DA3163P | Discovery 1 & Range Rover Classic 12mm Seal Swivel Repair Kit (GA3163P)
Discovery 1 and Range Rover Classic 12mm-seal swivel repair kit for rebuilding one side of an early front axle. Supplied with the bearings, main swivel seal, upper swivel pin, gaskets, shims and swivel grease needed when the existing swivel housing and ball remain smooth and serviceable.
- Fits early Discovery 1 and Range Rover Classic front axles using 12mm swivel seals
- Includes the upper swivel pin, upper and lower bearings and main swivel seal
- Supplied with gaskets, preload shims, joint washers and swivel grease
- Complete repair kit for one side of the front axle
£61.42 inc. UK VAT
Normal Stock Item
Family-run Land Rover parts specialist supplying Genuine, OEM & trusted aftermarket parts.
Free mainland UK shipping £99+ · Express options available
Worldwide Tracked Delivery Available
Description
DA3163P is the 12mm-seal swivel repair kit for one side of an early Discovery 1 or Range Rover Classic front axle. It renews the upper swivel pin, upper and lower bearings, main swivel seal, gaskets, preload shims, joint washers and related sealing parts while retaining a smooth and serviceable existing swivel housing and ball. GA3163P is the equivalent kit reference.
Worn swivel bearings can create movement at the hub, while a tired main seal allows swivel grease or oil to work past the housing. This kit groups the principal wearing, sealing and setting parts needed for a swivel rebuild without adding another housing and ball where the existing surfaces remain fit for reuse.

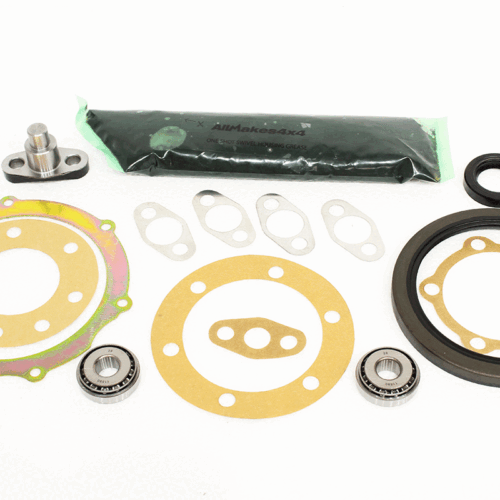

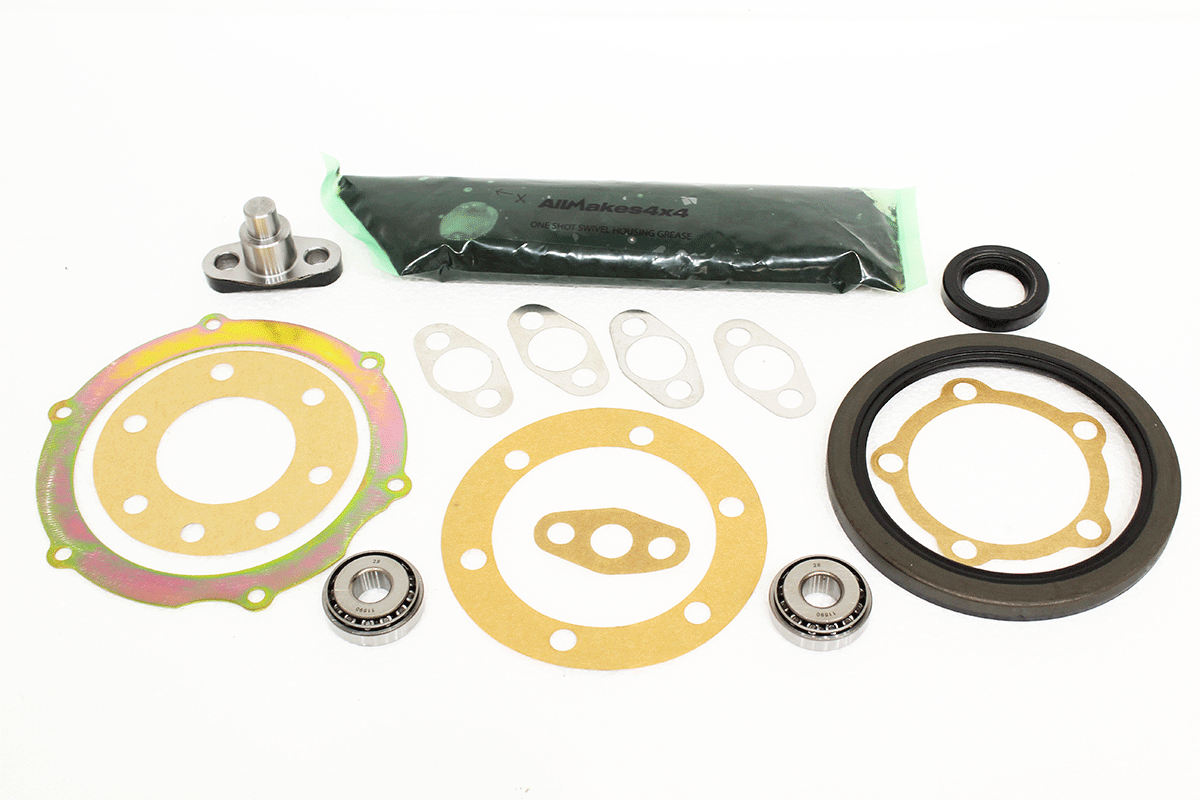

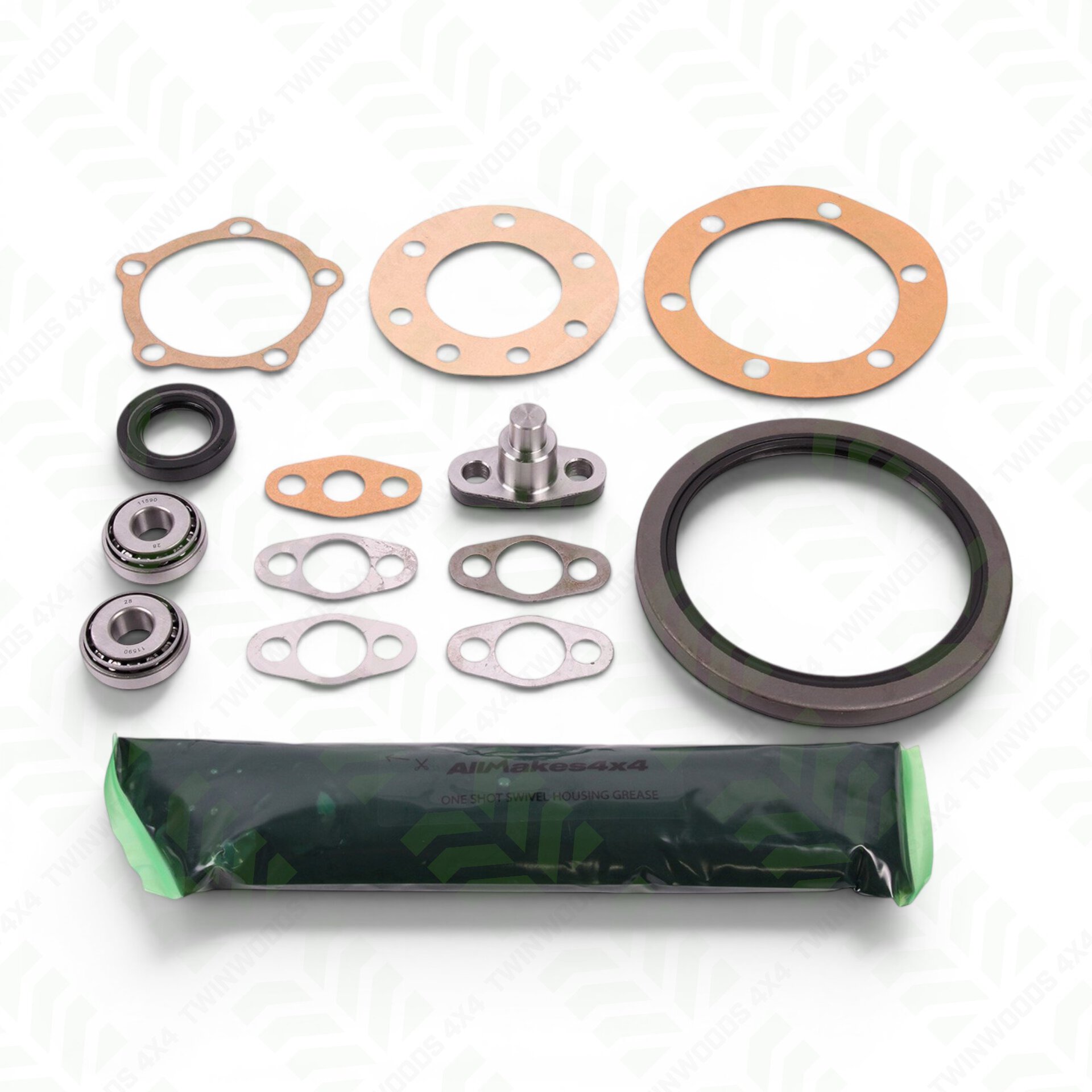

Kit Contents
- Upper swivel pin and bearing
- Lower swivel bearing
- 12mm swivel housing seal
- Swivel housing grease sachet
- Paper gaskets and preload shims
- Joint washers, seals and related small fittings
Vehicle Fitment
- Early Discovery 1 front axles using 12mm swivel seals
- Early Range Rover Classic front axles using 12mm swivel seals
- Approximately up to VIN JA32850 on Discovery 1
- Approximately up to VIN JA624516 on Range Rover Classic
- One kit required per side
Later front axles use an 8mm swivel-seal arrangement and require the corresponding later kit. Complete axles and swivel assemblies may also have been changed during the life of an older vehicle, so confirm the seal size and housing fitted to the axle before ordering.
Related Parts
Where the existing swivel housing or ball is pitted, rusty or badly scored, the DA3163G Discovery 1 and Range Rover Classic 12mm complete swivel housing kit includes a new housing and ball together with the bearing, sealing and fitting components.
See the full range of Discovery 1 swivel housing kits and Range Rover Classic swivel housing kits for early and later front axle arrangements.
Additional information
| Weight | 0.6 kg |
|---|---|
| Dimensions | 40 × 30 × 25 cm |
