Discovery 1 & Range Rover Classic Swivel Repair Kit (non-ABS) GA3165P / DA3165P

This swivel repair kit is aimed at later Discovery 1 and Range Rover Classic models with non-ABS front axles that use the GA3165 swivel housing pattern. On these vehicles the original seals and bearings are now many years old, so it’s common to see grease and oil working past the seals and making a mess of the inside of the wheels. GA3165P / DA3165P lets you rebuild one front swivel housing properly when the existing swivel ball is still smooth and free from heavy corrosion, without paying for complete swivel housings.

Because it’s built around good quality aftermarket bearings and seals, it’s a sensible choice for working trucks and budget-conscious refreshes.

What this kit does

As the axle ages, front swivels often start to leak oil or grease past the seals and the swivel bearings wear, creating play at the hub and vague steering. Left unattended, that contamination reaches the brake discs and can lead to MOT advisories or failures. This kit provides the key seals, bearings and shims you need to strip and rebuild one swivel assembly while reusing a good swivel ball and housing. With the preload correctly set as per the workshop manual, it helps restore oil-tight swivels, reduces play and gives a crisper steering feel.

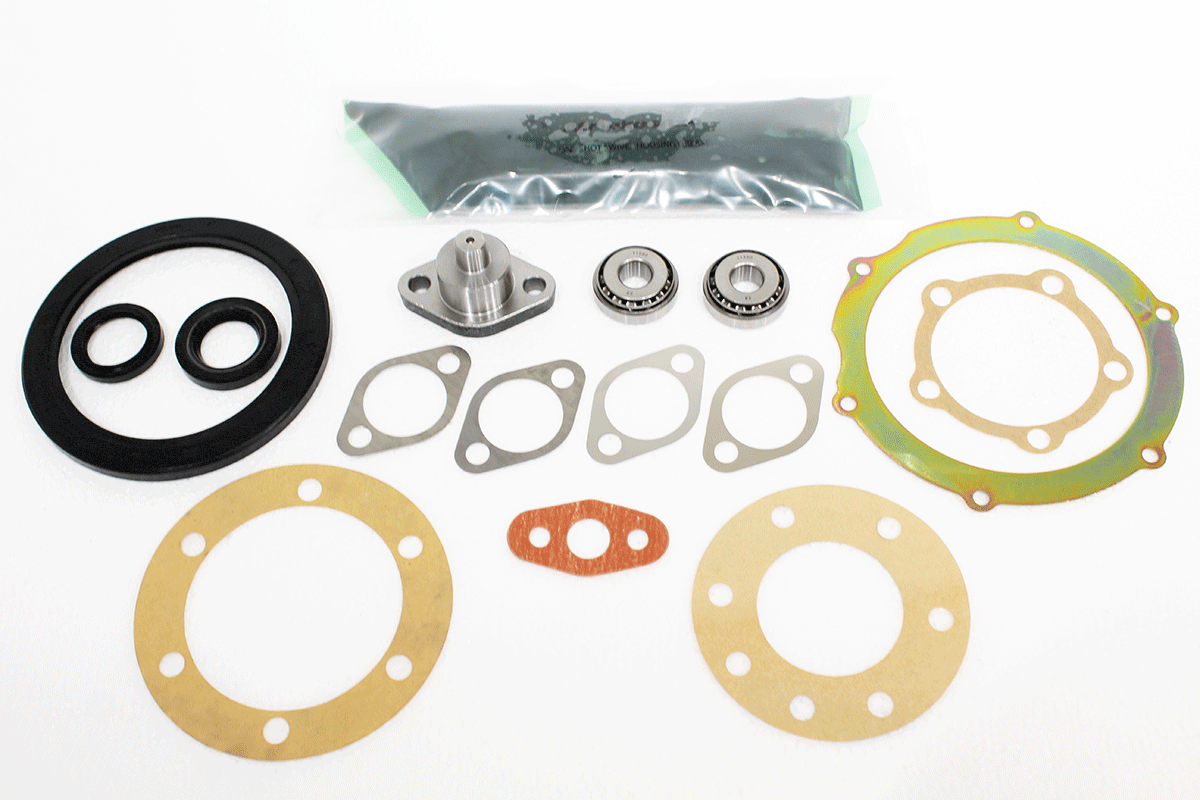

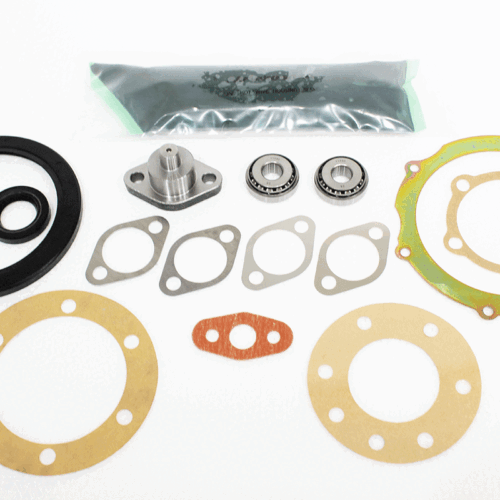

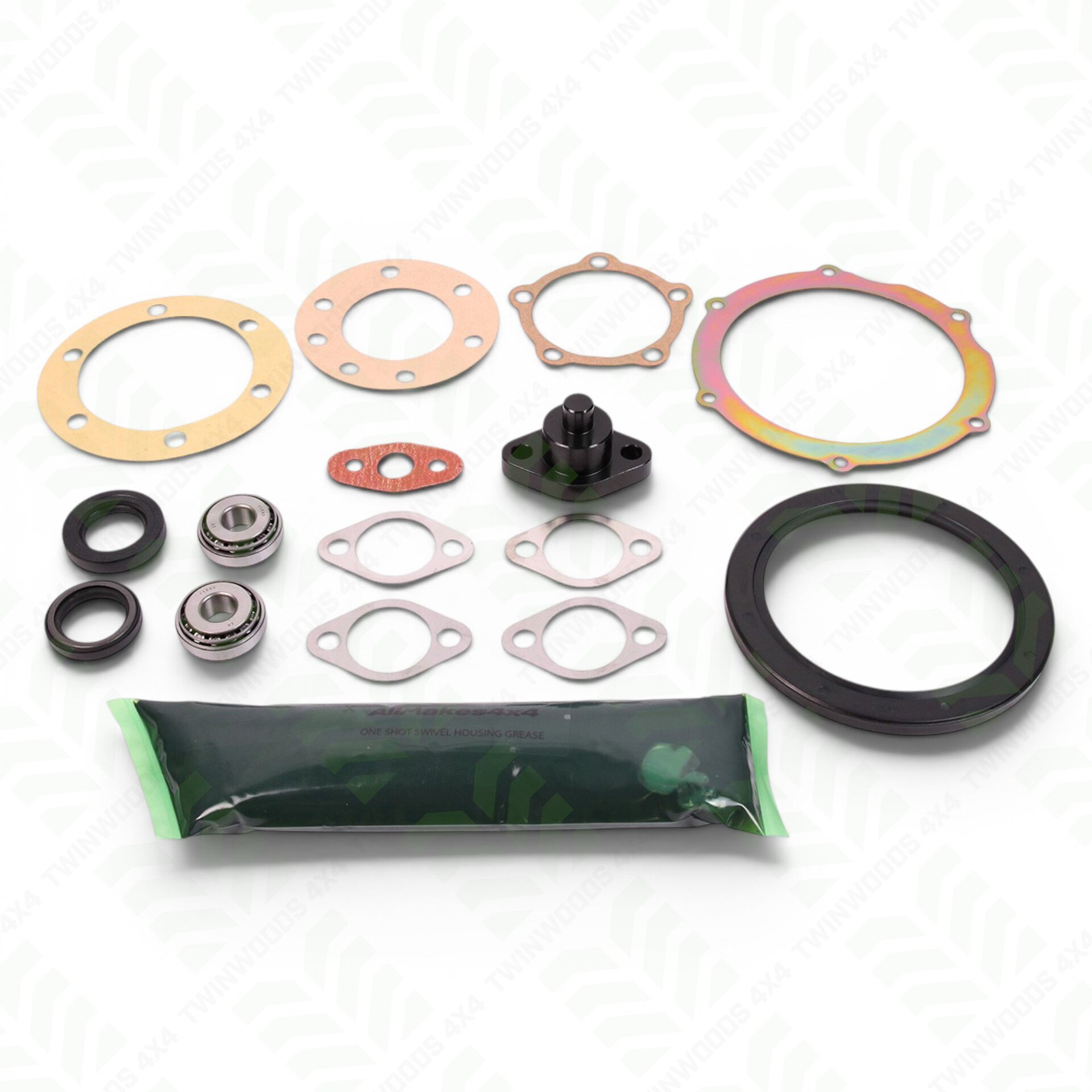

What’s included

This kit covers one side of the front axle and includes:

• Top swivel pin and bearing
• Bottom swivel pin bearing
• Swivel housing oil seal
• Swivel grease sachet
• Paper gaskets and shims
• Joint washers, seals and small fittings required for a standard rebuild

Using a complete kit like this saves time over ordering everything individually and reduces the risk of discovering you’re missing a small but important washer halfway through the job.

Vehicle compatibility

• Discovery 1 – from VIN JA32851 onwards, non-ABS front axles
• Range Rover Classic – from VIN JA624517 onwards, non-ABS front axles

Because axles and housings are often swapped over the years, it’s worth confirming that your vehicle is non-ABS at the front and uses the later GA3165-type swivel housing before ordering.

When to choose this kit

Choose this kit if you have a later non-ABS Discovery 1 or Range Rover Classic, your swivel balls are still bright and smooth, and you mainly need to address leaks or minor play at the hub. It’s ideal when you’re tidying up the front axle at the same time as wheel bearings, bushes and steering joints.

If the swivel balls are heavily pitted or flaking, or you want a long-term “fit and forget” solution, a full swivel housing kit with new housings and balls will usually be the better choice.

Fitting notes

This kit rebuilds one swivel only; order two kits if you plan to overhaul both sides. Fitting involves stripping the hub, brake caliper, stub axle and halfshaft, then removing the old swivel housing and shims. Always follow the Land Rover workshop manual, set the swivel preload with a spring balance and the new shims supplied, then pack and refill with the specified swivel oil or one-shot grease. After a short road test, re-check for leaks and confirm there is no remaining play at the wheel.
