Defender Wheel Bearing Kit – 300TDI / TD5 Onwards | TIMKEN®
Defender wheel bearing kit for 300TDI, TD5 and later TDCI models, supplied with two TIMKEN® tapered roller bearings, a Corteco inner hub seal and the associated hub rebuild parts. One kit rebuilds one front or rear hub, with the same bearing and sealing components used for both adjustable and later spacer-type arrangements.
- Fits Defender 300TDI, TD5 and later TDCI models, front or rear
- 2 × TIMKEN® RTC3429G / STC4382G wheel bearings with matching races
- Corteco FTC4785G inner hub seal with lock washer, drive flange gasket and half shaft circlip
- Suitable for adjustable twin-nut and later spacer-type hub arrangements
Later spacer-equipped hubs can also be easily converted to the conventional adjustable bearing setup by removing the spacer and using two FRC8700 hub nuts.
Original price was: £33.88.£32.19Current price is: £32.19. inc. UK VAT
Wheel bearing kit includes :
Normally stocked — stock may be low or awaiting replenishment
In stock - ready for immediate dispatch
In stock - ready for immediate dispatch
In stock - ready for immediate dispatch
In stock - ready for immediate dispatch
Family-run Land Rover parts specialist supplying Genuine, OEM & trusted aftermarket parts.
Free mainland UK shipping £99+ · Express options available
Worldwide Tracked Delivery Available
Recommended:
2 × FRC8700G | Land Rover Hub Lock Nut – OEM
In stock - ready for immediate dispatch
Original price was: £1.70.£1.62Current price is: £1.62. inc. UK VAT
1 × RFD100000 | Defender Wheel Bearing Hub Lock Nut – Staked Type
In stock - ready for immediate dispatch
Original price was: £1.84.£1.75Current price is: £1.75. inc. UK VAT
2 × SYP500090 | Brake Caliper Bolt M12 x 35 – Defender & Discovery
In stock - ready for immediate dispatch
Original price was: £1.32.£1.25Current price is: £1.25. inc. UK VAT

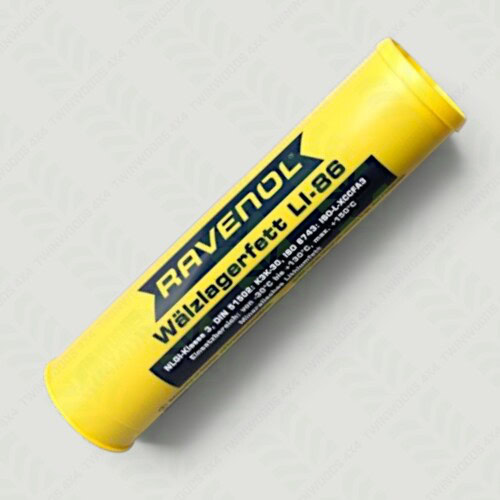

1 × Ravenol LI-86 Bearing & Propshaft Grease – 400g Cartridge
In stock - ready for immediate dispatch
Original price was: £4.75.£4.51Current price is: £4.51. inc. UK VAT
1 × 52mm Land Rover Hub Nut Socket
Normally stocked — stock may be low or awaiting replenishment
Original price was: £25.20.£23.94Current price is: £23.94. inc. UK VAT
Description
Defender wheel bearing kit for rebuilding one front or rear hub on 300TDI, TD5 and later TDCI models from VIN LA930456 onwards. The kit combines two TIMKEN® RTC3429G / STC4382G tapered roller wheel bearings with a Corteco FTC4785G inner hub seal, locking washer, drive flange gasket and half shaft circlip. These components are used with both the conventional adjustable twin-nut arrangement and the later hub setup using a bearing spacer and single hub nut.
Kit Contents
- 2 × RTC3429G / STC4382G TIMKEN® wheel bearings with matching races
- 1 × FTC4785G Corteco inner hub seal
- 1 × FTC3179 wheel bearing lock washer
- 1 × 571752 drive flange gasket

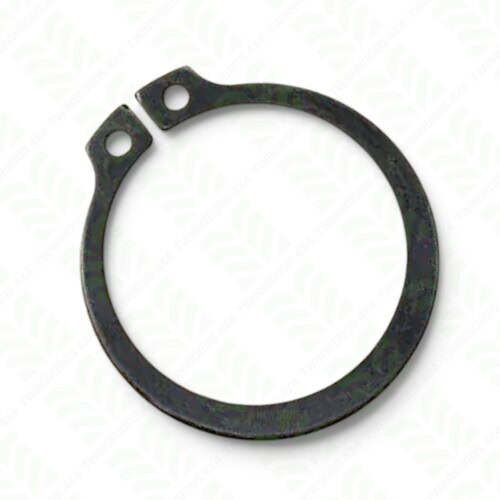

- 1 × 549473 half shaft circlip
Adjustable and Spacer-Type Hub Arrangements
The bearing, seal, lock washer, drive flange gasket and circlip supplied in this kit are used with both hub arrangements. The difference is the hub nut setup.
Adjustable hubs use two FRC8700 hub lock nuts per hub. These nuts are normally reusable, so they are not included as standard with the bearing kit. Later spacer-type hubs use a single RFD100000 staked hub nut per hub.
Later spacer-equipped hubs can be easily converted to the conventional adjustable bearing arrangement. Removing the bearing spacer and using two FRC8700 hub nuts gives conventional manual wheel bearing adjustment without changing the bearings, seal or other parts supplied in this kit.
Vehicle Fitment
- Defender 90, 110 and 130 from VIN LA930456 onwards
- 300TDI, TD5 and later TDCI models
- Front or rear hub
- Adjustable twin-nut or later spacer-type hub arrangement
- One kit required per hub
Additional information
| Weight | 2 kg |
|---|---|
| Dimensions | 15 × 15 × 8 cm |
Brand
Brand
Timken Bearings
Timken bearings for Land Rover wheel, hub, axle and drivetrain repairs, from one of the best-established names in bearing manufacture.
Timken is particularly well known for tapered roller bearings, alongside a broader range of ball and roller bearing designs. Check the individual product page for vehicle fitment, bearing position and part-number details before ordering.
More than 125 years of bearing experience
Timken was founded in the United States in 1899 following Henry Timken’s development of the tapered roller bearing. The company has since grown into an international bearing and motion-technology manufacturer, while bearing engineering remains central to the Timken name.
Its bearing portfolio now covers tapered, cylindrical, spherical, thrust and ball bearing designs for automotive, industrial and other heavily loaded mechanical systems.
Why Twinwoods stocks Timken bearings
Bearings are not parts where saving a small amount is worthwhile if it means repeating the job. Accurate dimensions, consistent manufacture and the correct bearing design all matter when the component is carrying vehicle weight, controlling shaft movement or operating continuously under load.
Twinwoods 4x4 stocks Timken where we want a quality bearing from an established bearing specialist. The range can support wheel, hub, swivel, axle, engine auxiliary and drivetrain repairs without limiting this brand page to the products currently shown in the grid.
Match the bearing to the Land Rover
Bearings that appear similar can differ in dimensions, internal design, supplied races and intended position. Match the product to the Land Rover part number, vehicle, axle or component position and any fitment notes shown on the individual product page.
