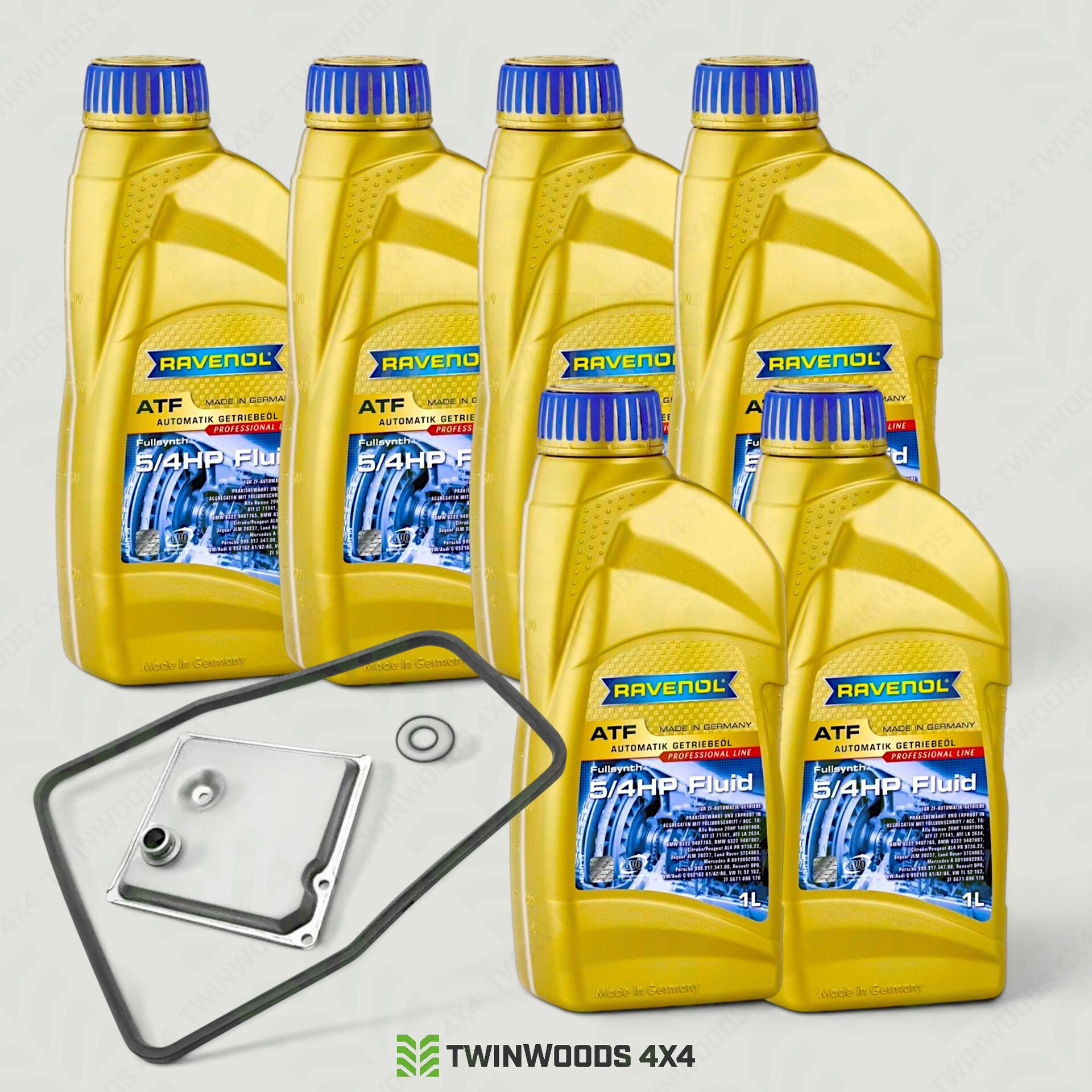

Discovery 2 ZF 4HP22/24 Automatic Gearbox Service Kit – Ravenol ATF 5/4 HP
Original price was: £131.24.£125.99Current price is: £125.99. inc. UK VAT
In stock - ready for immediate dispatch
In stock - ready for immediate dispatch
Secure Checkout
Fast Dispatch
60 Day Returns
Worldwide Delivery
UK Dispatch
Free mainland UK shipping £99+ · Express & worldwide options available
Recommended:

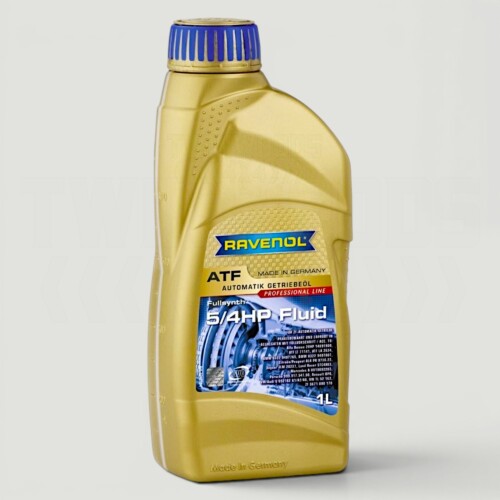

Ravenol ATF 5/4 HP 1L | Discovery 2 ZF 4HP22 Gearbox Oil
In stock - ready for immediate dispatch
Original price was: £18.20.£17.75Current price is: £17.75. inc. UK VAT

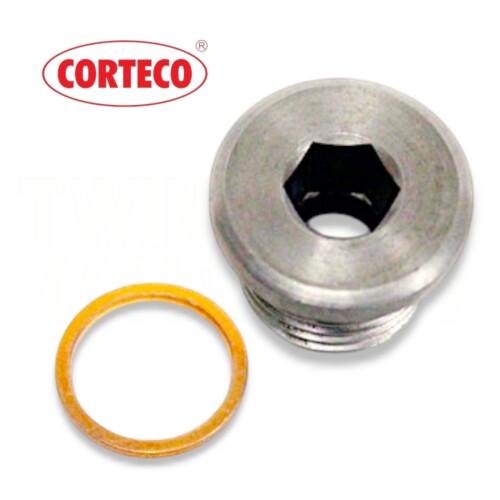

Discovery 2 & Range Rover P38 ZF Auto Gearbox Fill Plug – Corteco | TYB100080G
In stock - ready for immediate dispatch
Original price was: £10.14.£9.84Current price is: £9.84. inc. UK VAT

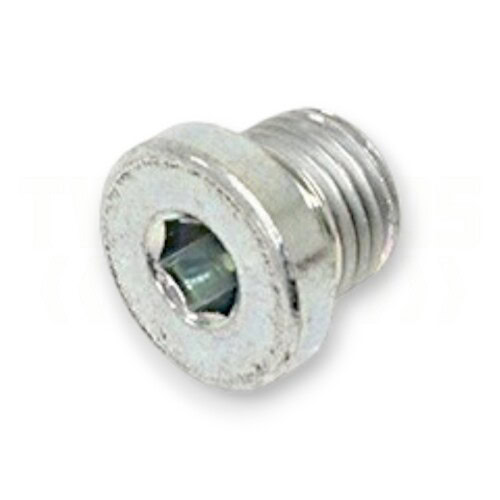

Discovery 2 & Range Rover P38 ZF Auto Drain Plug – OE Quality | STC4098
In stock - ready for immediate dispatch
Original price was: £3.58.£3.47Current price is: £3.47. inc. UK VAT

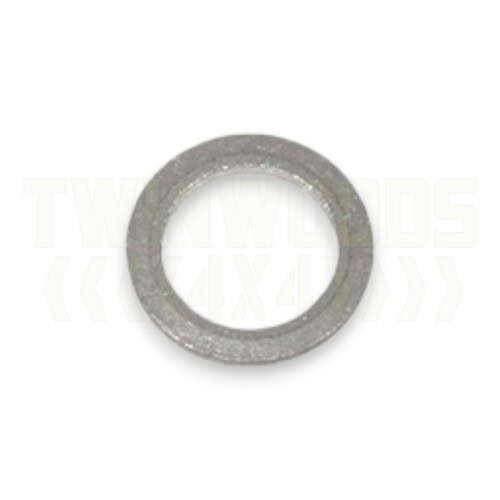

Discovery 2 & Range Rover P38 ZF Auto Drain Plug Washer – OE Quality | STC4099
In stock - ready for immediate dispatch
Original price was: £2.38.£2.31Current price is: £2.31. inc. UK VAT
Description
Discovery 2 ZF 4HP22/24 automatic gearbox oil and filter service kit built around the fluid we put in the gearboxes ourselves. The kit combines an OE-quality RTC4653K filter, sump gasket and seals with 6L of Ravenol ATF 5/4 HP, a synthetic ATF developed specifically for ZF 4HP and 5HP automatic transmissions and recommended against Land Rover STC4863, ATF LT 71141 and ZF S671 090 170. If the sump is coming off and the filter is being changed, the fluid is not the place to economise: it is the oil that remains inside the transmission lubricating the gearbox, operating the hydraulic system, controlling clutch friction and carrying heat away long after the service is finished.
Why Ravenol ATF 5/4 HP?
For a healthy Discovery 2 automatic gearbox, a proper oil and filter service with the right fluid is one of the most worthwhile maintenance jobs you can do. Compared with a service kit built around a general mineral Dexron III ATF, Ravenol ATF 5/4 HP gives the ZF gearbox a much more transmission-specific fluid. It is made for the ZF 4HP and 5HP families, including the 4HP22 and 4HP24, rather than being a general-purpose ATF selected simply because it falls within a broad fluid specification.
Ravenol gives this fluid high thermal and oxidation stability, stable friction behaviour, wear protection, resistance to corrosion and foaming, good low-temperature lubrication and strong cooling performance. Those are exactly the properties an automatic transmission asks of its oil. The filter and gasket matter, but Ravenol ATF 5/4 HP is the main reason we build the complete Discovery 2 service kit this way and why it is our preferred fluid for the ZF automatic gearbox.

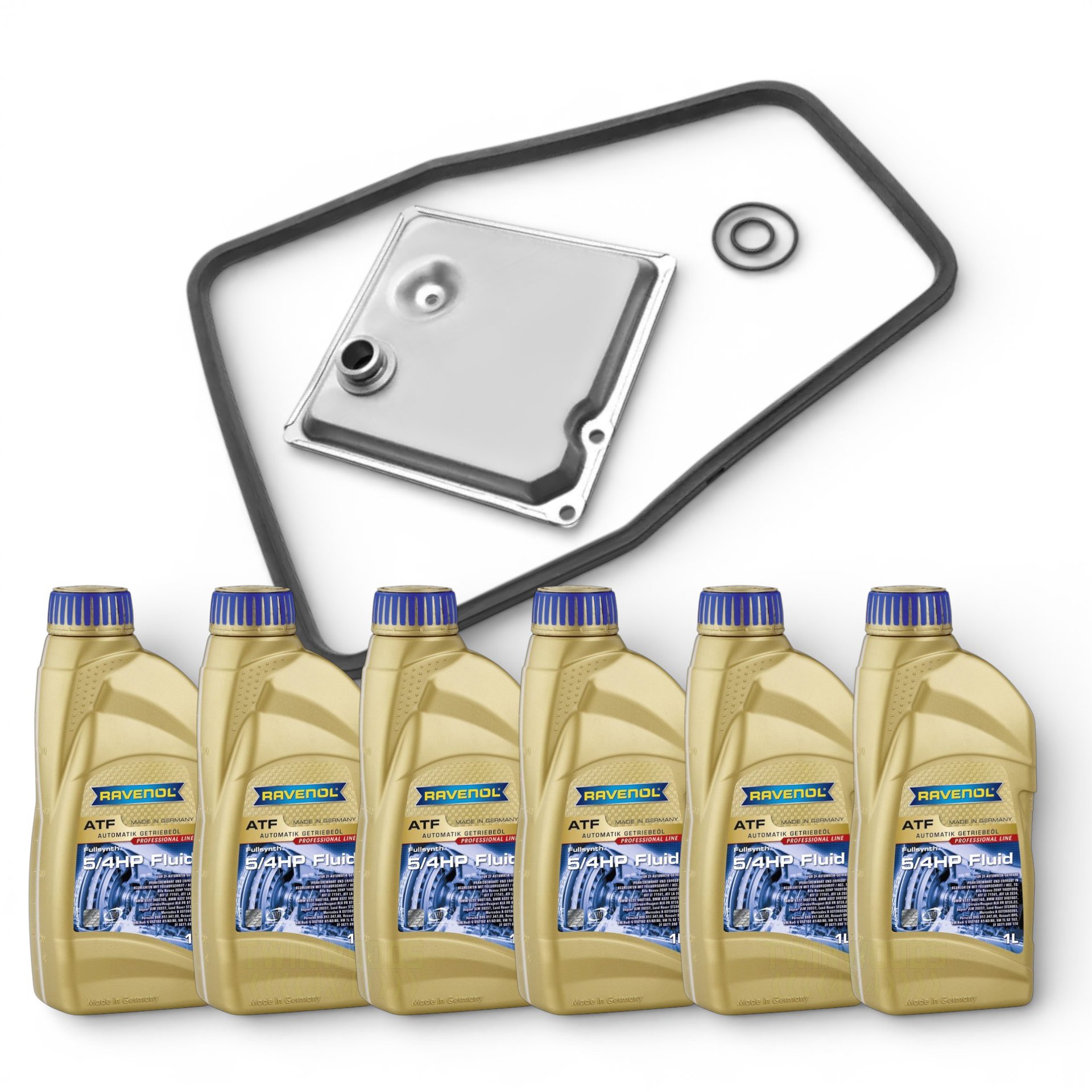

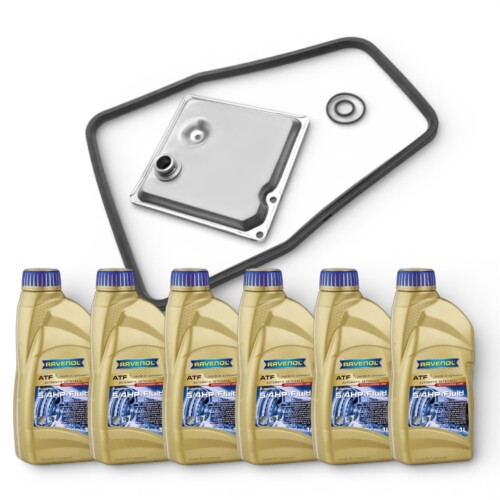

Kit Contents
- 6 × 1L Ravenol ATF 5/4 HP synthetic automatic transmission fluid

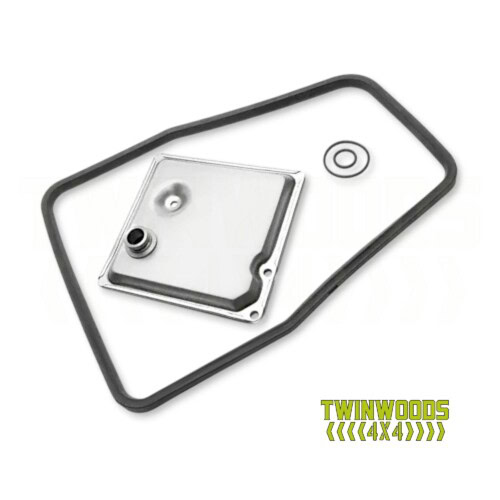

- 1 × OE-quality RTC4653K ZF automatic gearbox filter kit
- Automatic gearbox oil screen filter
- Sump pan gasket
- Associated seals / O-rings supplied with the filter kit
Fluid References and Technical Data
Ravenol recommends ATF 5/4 HP against the important Land Rover and ZF fluid references used with this transmission family:
- Land Rover: STC4863
- ATF: LT 71141
- ZF: S671 090 170
| Property | Unit | Data | Audit |
|---|---|---|---|
| Colour | gelbbraun | VISUELL | |
| Density at 20 °C | kg/m³ | 849,0 | EN ISO 12185 |
| Pourpoint | °C | -54 | DIN ISO 3016 |
Vehicle Fitment and Service Quantity
- Discovery 2 TD5 automatic
- Discovery 2 V8 automatic
- ZF 4HP22 / 4HP24 automatic gearbox family
The kit contains 6L of Ravenol ATF 5/4 HP for a normal sump-off oil and filter service. A routine service does not drain the torque converter or remove the complete dry-fill quantity from the transmission. Additional Ravenol ATF 5/4 HP is available separately where further drain-and-refill cycles are planned.
The ZF automatic gearbox fill plug, drain plug and drain plug washer are also available separately. For other gearbox components, see Discovery 2 automatic transmission parts.
Additional information
| Weight | 7 kg |
|---|---|
| Dimensions | 50 × 30 × 4 cm |
| Vehicle | Discovery 2 – Td5 & V8 |
| Transmission | ZF 4HP22/24 |
| Service Type | Oil & filter service kit |
| ATF Brand | Ravenol |
| ATF Type | Ravenol ATF 5/4 HP |
| ATF Quality | Fully Synthetic |
| ATF Quantity | 6 × 1L |
| Filter kit part number | RTC4653K / RTC4653G / RTC4653 |
| Kit Includes | Filter + sump gasket/seals + ATF |
