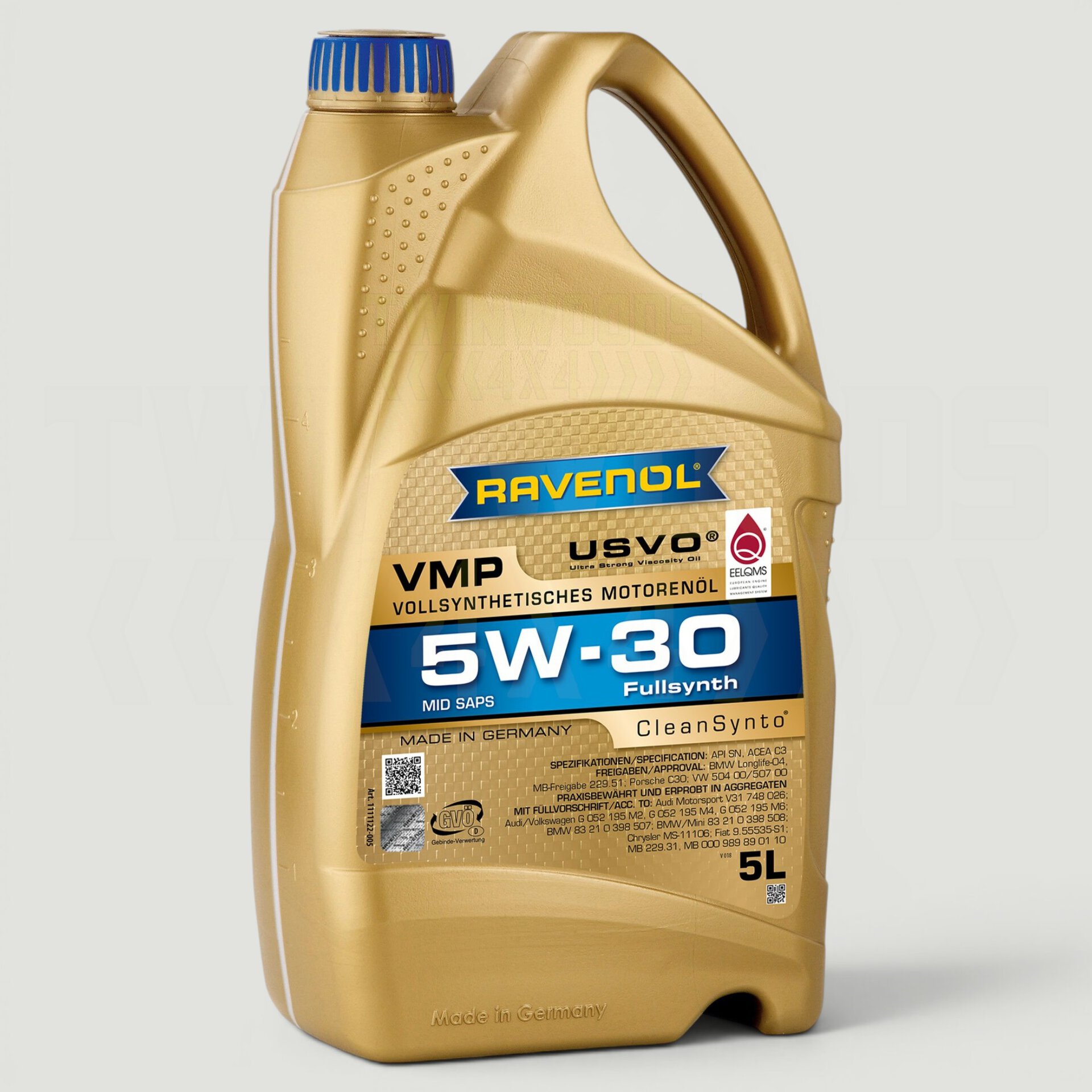

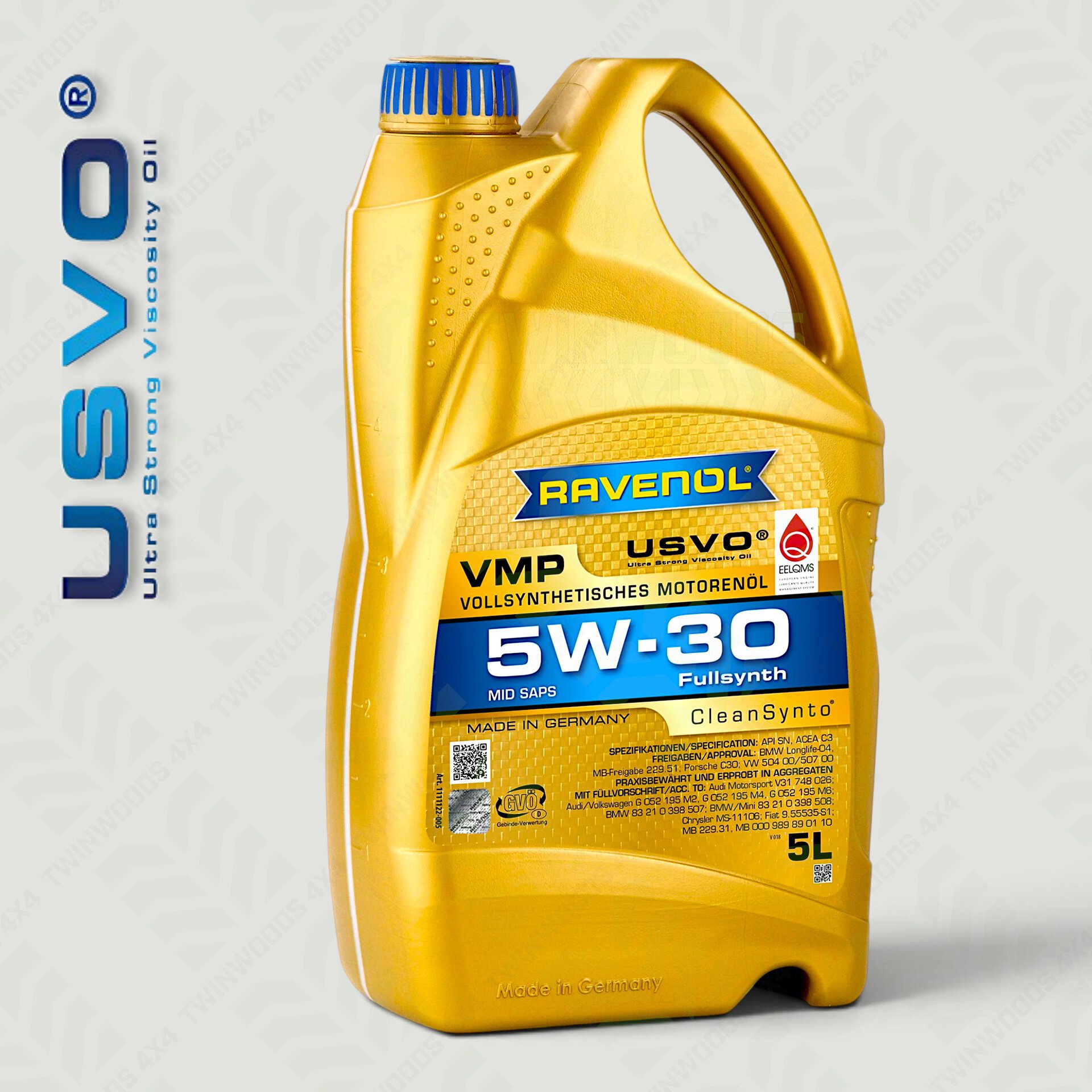

RAVENOL VMP 5W-30 USVO® Engine Oil 5L – VW 504 / 507
£93.62 inc. UK VAT
Available – typically dispatched within 1–2 working days
Secure Checkout
Fast Dispatch
60 Day Returns
Worldwide Delivery
UK Dispatch
Free mainland UK shipping £99+ · Express & worldwide options available
Description
RAVENOL VMP SAE 5W-30 is a PAO-based, fully synthetic Mid SAPS engine oil using Ravenol USVO® and CleanSynto® technology. Developed for modern petrol and diesel engines, including turbocharged and direct-injection engines, it carries BMW Longlife-04, MB 229.51, Porsche C30 and VW 504 00 / 507 00 approvals. Its Mid SAPS formulation is compatible with diesel particulate filters and three-way catalytic converters where these specifications are required.
Engine oil suitability is determined by the required specification and manufacturer approval as well as viscosity grade. Check the vehicle requirement against the approvals shown below before ordering.
USVO® Fully Synthetic Formulation
Ravenol USVO® technology is built around high viscosity stability across a wide temperature range, strong resistance to shear and oxidation, low evaporation and good low-temperature flow. VMP combines this with a Mid SAPS additive system intended for modern emissions-equipped engines. Published technical data includes a viscosity index of 179, HTHS viscosity of 3,7 mPa*s, a -60 °C pour point and Noack volatility of 6,4%.
VMP is suitable for normal or extended oil-change intervals where the vehicle manufacturer permits them. The vehicle manufacturer’s service interval should always take precedence over a general oil-drain claim.
Specifications, Approvals and Recommendations
- Viscosity: SAE 5W-30
- Specifications: ACEA C3; API SN
- OEM approvals: BMW Longlife-04; MB 229.51; Porsche C30; VW 504 00; VW 507 00
- Manufacturer recommendations: Audi Motorsport V31 748 026; BMW 83 21 0 398 507; BMW/Mini 83 21 0 398 508; Chrysler MS-11106; Fiat 9.55535-S1; MB 229.31; MB A 000 989 89 01 10; VW/Audi G 052 195 M2; G 052 195 M4; G 052 195 M6
- Pack size: 5L
- Ravenol article number: 1111122-005-01-999
Technical Product Data
| Property | Unit | Data | Audit |
|---|---|---|---|
| Density at 20 °C | kg/m³ | 849,0 | EN ISO 12185 |
| Colour | Gold | Visual | |
| Viscosity at 100 °C | mm²/s | 11,9 | DIN 51562-1 |
| Viscosity at 40 °C | mm²/s | 66,3 | DIN 51562-1 |
| Viscosity Index VI | 179 | DIN ISO 2909 | |
| HTHS Viscosity at 150 °C | mPa*s | 3,7 | ASTM D5481 |
| CCS Viscosity at -30 °C | mPa*s | 4740 | ASTM D5293 |
| Low Temp. Pumping viscosity (MRV) at -35 °C | mPa*s | 12.000 | ASTM D4684 |
| Pourpoint | °C | -60 | DIN ISO 3016 |
| Noack Volatility | % M/M | 6,4 | ASTM D5800 |
| Flashpoint | °C | 238 | DIN EN ISO 2592 |
| tbn | mg KOH/g | 8,8 | ASTM D2896 |
| Sulphated Ash | %wt. | 0,7 | DIN 51575 |
Related Engine Oils
Other viscosity grades and manufacturer specifications can be compared in our 5W-30 engine oil section. For other Ravenol oils using the same core technology, see the Ravenol USVO® engine oil range.
Additional information
| Weight | 5 kg |
|---|---|
| Dimensions | 25 × 15 × 30 cm |
Brand
Brand
Ravenol
Ravenol is our main lubricant brand for Land Rover servicing, covering engine oils, manual and automatic gearboxes, transfer boxes, differentials, ACE and power steering, brake fluid, coolant, grease and specialist workshop fluids.
We use Ravenol because the range lets us select the lubricant around the actual engine, gearbox, axle or hydraulic system rather than relying on viscosity alone. The result is a deliberately selected Land Rover range in which every product has a defined job, from TD5 engine oil and R380 MTF-94 to specialist ZF ATF, LT230 oil, limited-slip differential oil and later transfer-box fluids.
Why Twinwoods partners with Ravenol
Ravenol is a genuine German lubricant manufacturer, developing and producing its oils, fluids and greases in Germany. The range is backed by unusually detailed technical data, which matters to us because lubricant choice should be based on much more than the viscosity printed on the bottle. We use Ravenol in our service kits, recommend it for the Land Rovers we specialise in and use it in vehicles we work on ourselves. More importantly, the range gives us properly specialised products for different engines, gearboxes, transfer boxes, axles and hydraulic systems rather than trying to make one generic lubricant cover everything.Ravenol oils and fluids for Land Rover
| System | Ravenol products | What matters |
|---|---|---|
| Engine oil | VMO, RUP, Turbo-C HDC, TSi, FO, FLJ, VMP, SFE and Formel Extra | Engine, viscosity, specification, emissions equipment and how the vehicle is used |
| Manual gearboxes | MTF-2 / MTF-94 for the R380 and VSG 75W-90 for the Defender Puma MT82 | Gearbox type and complete lubricant specification rather than viscosity alone |
| Automatic gearboxes | ATF 5/4 HP and ATF Dexron III H | ATF 5/4 HP is our specialist choice for the Discovery 2 ZF 4HP gearbox, while Dexron III H covers compatible general ATF duties |
| Transfer boxes | MZG 80W-90 and VSG 75W-90 for the LT230, plus DTF-1 for compatible later active transfer boxes | Transfer box design and the fluid specification required by that particular unit |
| Axles and differentials | EPX 80W-90, VSG 75W-90, RHP 75W-90, LS 75W-90 and LS 80W-90 | Standard, ATB or limited-slip differential design together with the required viscosity and friction characteristics |
| ACE and power steering | SSF and ATF Dexron III H | Hydraulic system and the correct fluid specification |
| Brakes and clutch | DOT 4 LV and DOT 4 | DOT 4 LV is our main brake and clutch fluid, with conventional DOT 4 retained where appropriate |
| Cooling systems | C12+ OAT and C12evo Si-OAT coolant concentrates | Coolant technology, engine and the fluid already in the cooling system |
| Grease | MoS2 Multi-Purpose Grease, LI-86 Bearing & Propshaft Grease and HRG 2 Hot Red Grease | MoS2 for broad workshop and driveline use, LI-86 for bearings and universal joints, and HRG 2 for high-temperature grease duties |
| Workshop fluids | Professional Engine Cleaner and Winter Screenwash Concentrate | Purpose-specific maintenance products alongside the main lubricant range |
More than the correct number on the bottle
Two oils carrying the same viscosity grade can be very different products. Base oil, additive chemistry, volatility, viscosity stability, friction characteristics and manufacturer specifications all affect how a lubricant behaves once it is hot and working inside the component. That is particularly important with Land Rovers. An R380 gearbox, LT230 transfer box, Rover differential, ZF automatic gearbox and electronically controlled later transfer box all place different demands on their lubricant. We select the Ravenol product around the component itself rather than simply finding the nearest familiar viscosity.Identify the component
Start with the engine, gearbox, transfer box, differential or hydraulic system being serviced.
Match the specification
Check the complete ACEA, API, GL, manufacturer or transmission-fluid requirement rather than viscosity alone.
Consider vehicle use
Standard servicing, towing, off-road use and highly tuned engines can place very different demands on the lubricant.
Check existing fluid
Coolant, hydraulic fluids and specialist transmission oils should not be mixed simply because their colour or general description appears similar.
Ravenol engine oil
Our Ravenol engine-oil range runs from traditional oils for 200TDI, 300TDI and classic petrol engines through to specialist oils for TD5, Defender Puma TDCI and later Land Rover engines. Ravenol VMO 5W-40 remains our main TD5 recommendation, RUP 5W-40 covers very highly tuned TD5 engines, Turbo-C HDC 15W-40 is our preferred oil for standard 200TDI and 300TDI engines, while FO, FLJ, VMP and SFE cover the relevant later engine and emissions-system requirements.Related Ravenol and oil sections
| Section | Use it for |
|---|---|
| Oils, Grease & Fluids | The complete Twinwoods lubricant, coolant and service-fluid range |
| Engine Oil | Engine oils selected around Land Rover engines, viscosity and specification |
| Gear Oil | R380, MT82, LT230, differential and specialist transfer-box oils |
| ATF & Steering Fluid | Automatic transmission and power-steering fluids |
| ACE Fluid | Discovery 2 Active Cornering Enhancement hydraulic fluid |
| Antifreeze & Coolant | OAT and Si-OAT coolant for different generations of Land Rover |
| Brake Fluid | DOT 4 and DOT 4 LV brake and clutch fluids |
| Land Rover Grease | Grease for propshafts, universal joints, bearings, high-temperature use and general workshop lubrication |
