TD5 Auxiliary Drive Belts
TD5 auxiliary drive belts for Defender and Discovery 2, with Dayco belts covering all four air-conditioning and ACE layouts and Gates Micro-V belts available for the three more common fitments.
Belt length is determined by the equipment fitted to the vehicle. Check air conditioning and, on Discovery 2, ACE before ordering, then confirm the PQS reference or 7PK size against the markings on the existing belt.
Showing all 7 resultsSorted by popularity
Dayco Discovery 2 TD5 Belt 7PK1820 – No A/C, With ACE | PQS101520D
Find the correct TD5 auxiliary drive belt
There is no single auxiliary belt for every TD5. Defender belt selection is determined by air-conditioning fitment, while Discovery 2 also splits according to whether the vehicle has Active Cornering Enhancement. Match the vehicle equipment first, then use the Land Rover reference and 7PK belt size as confirmation.
| Vehicle equipment | Land Rover reference and size | Available belts |
|---|---|---|
| Defender or Discovery 2 without air conditioning or ACE | PQS101490 – 7PK1715 | Dayco or Gates Micro-V |

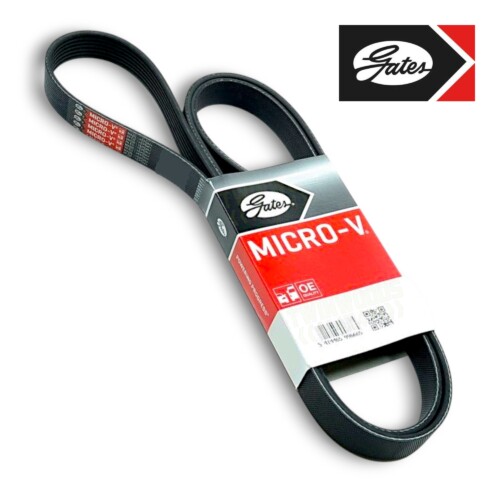

| Defender or Discovery 2 with air conditioning and without ACE | PQS101500 – 7PK1800 | Dayco or Gates Micro-V |
| Discovery 2 with air conditioning and ACE | PQS101510 – 7PK1870 | Dayco or Gates Micro-V |
| Discovery 2 without air conditioning and with ACE | PQS101520 – 7PK1820 | Dayco |
What does the TD5 auxiliary belt drive?
The auxiliary belt transfers drive from the crankshaft to several important components at the front of the TD5 engine. The exact layout depends on the vehicle specification, but one belt can be responsible for charging, power steering assistance, coolant circulation, cooling-fan drive and several other systems.
| Driven component | What happens if the belt stops |
|---|---|
| Alternator | Battery charging stops and the vehicle continues running only while sufficient battery power remains. |
| Vacuum pump | Vacuum generation stops. The hydraulic brakes still operate, but the pedal becomes much harder once the stored brake-servo vacuum has been used. |
| Power steering pump | Power assistance is lost and the steering becomes considerably heavier. |
| Coolant pump and viscous fan drive | Coolant circulation and mechanical fan drive stop, creating a serious risk of rapid engine overheating. |
| Air-conditioning compressor | The air-conditioning system stops operating. |
| ACE pump on equipped Discovery 2 models | The Active Cornering Enhancement hydraulic system stops operating and active roll control becomes unavailable. |
How TD5 auxiliary belts fail
Heat, age and repeated flexing gradually harden the belt material. Cracks, splits, glazing, frayed edges, missing rib sections and oil contamination all show that the belt is approaching the end of its service life.
The belt itself is not always the original cause of failure. A worn tensioner, rough pulley bearing, damaged pulley or poor belt alignment can make the belt wander, squeal, lose ribs, shred or come off completely. Check the complete drive before fitting another belt.
Why carry a spare TD5 auxiliary belt?
A correctly sized spare belt takes very little room in the vehicle but can prevent a straightforward belt failure from ending in recovery. Loss of one belt affects several essential systems at once, and continuing to drive without coolant circulation, power steering assistance or battery charging is not realistic.
There are four different TD5 belt lengths, so the spare must match the vehicle’s air-conditioning and ACE layout. A spare belt will not solve a seized pulley or failed tensioner; check that the driven components turn freely and that the tensioner remains serviceable before fitting it.
Dayco and Gates TD5 belts
Dayco covers every standard TD5 auxiliary belt layout shown here. Gates Micro-V belts provide the premium belt choice for the three more common PQS101490, PQS101500 and PQS101510 fitments.
| Manufacturer | Available fitments |
|---|---|
| Dayco | PQS101490, PQS101500, PQS101510 and PQS101520 |
| Gates Micro-V | PQS101490, PQS101500 and PQS101510 |
Inspect the complete TD5 auxiliary drive
Check the automatic tensioner for excessive movement, poor alignment or a weak spring, and inspect every pulley for roughness, free play or signs that the belt has been running against an edge. Oil leaks should also be dealt with before they contaminate the replacement belt.
