TD5 Water Pumps & Coolant Pump Parts
TD5 water pumps and coolant pump parts for Defender and Discovery 2, including ProFlow, Meyle and selected replacement pumps, the ERR7047 pump cover and a replacement fixing-bolt kit.
All three pumps fit the same TD5 engine application and replace PEM500040 / ERR6505. Compare the manufacturer and quality position, then inspect the existing pump cover and bolts before ordering the parts needed for the job.
Showing all 5 resultsSorted by popularity
Find the right TD5 water pump parts
The main buying decision is between the three complete water pumps. The coolant-pump cover and fixing bolts are separate parts for damaged, corroded or previously disturbed pump assemblies.
| Job | Best place to start | Check before ordering |
|---|---|---|
| Replace the water pump | ProFlow, Meyle or selected replacement pump | Compare the manufacturer, quality position and product details; all three replace PEM500040 / ERR6505 and are supplied with sealing parts |
| Replace a damaged pump cover | ERR7047 coolant-pump cover | Inspect the original cover for corrosion, damaged sealing faces, cracks and worn bolt holes |
| Replace worn or corroded fixings | TD5 water-pump bolt kit | Check the original bolt heads and threads, particularly where the pump or cover has previously been removed |
| Refill the cooling system | Compatible OAT antifreeze and coolant | Check the coolant type already in the system and avoid mixing incompatible coolant formulations |
Check the complete pump assembly
Shared TD5 fitment
The pumps fit Defender TD5 and Discovery 2 TD5 engines. There is no separate Defender or Discovery 2 pump within this product group.
The pumps fit Defender TD5 and Discovery 2 TD5 engines. There is no separate Defender or Discovery 2 pump within this product group.
Pump references
PEM500040 and ERR6505 identify the TD5 water pump being replaced. Product suffixes are used to distinguish the different pump choices.
PEM500040 and ERR6505 identify the TD5 water pump being replaced. Product suffixes are used to distinguish the different pump choices.

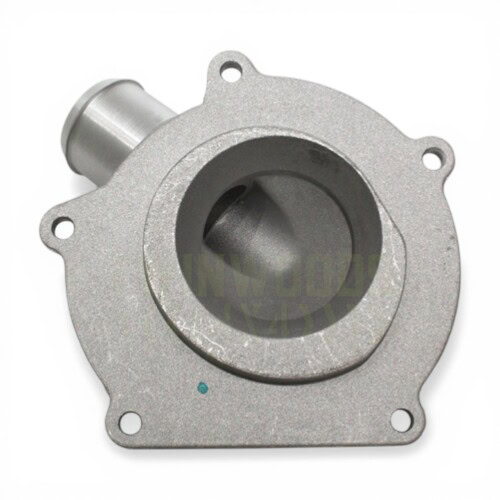

Coolant-pump cover
The ERR7047 cover is sold separately. Replace it where the original is damaged, corroded or no longer provides a sound sealing surface.
The ERR7047 cover is sold separately. Replace it where the original is damaged, corroded or no longer provides a sound sealing surface.
Fixing bolts
Fresh bolts avoid reusing corroded or rounded fixings and are particularly relevant where the pump assembly has previously been disturbed.
Fresh bolts avoid reusing corroded or rounded fixings and are particularly relevant where the pump assembly has previously been disturbed.

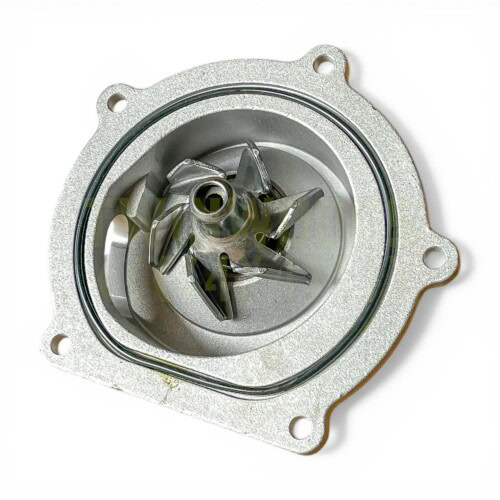

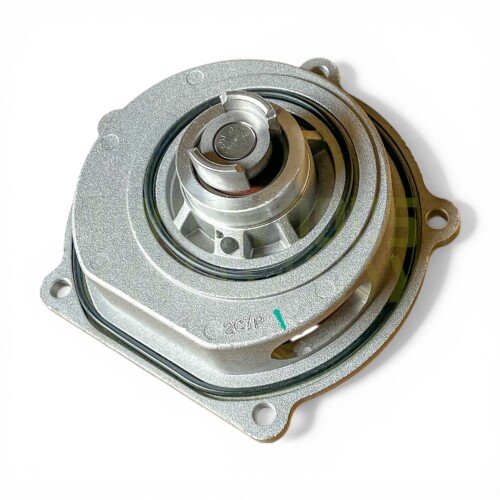

Compare the TD5 water pumps
| Water pump | Main distinction |
|---|---|

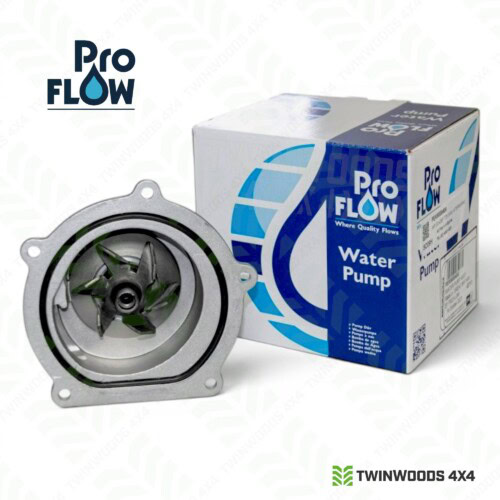

| ProFlow water pump | Twinwoods’ preferred quality-led pump for Defender TD5 and Discovery 2 TD5 cooling-system repairs, supplied with its housing seal. |
| Meyle water pump | Meyle branded replacement pump with the sealing parts pre-fitted. |
| Selected replacement water pump | Price-led replacement pump for the same PEM500040 / ERR6505 fitment, supplied with seals pre-fitted. |
| ERR7047 pump cover | Separate coolant-pump cover for replacing a damaged, corroded or leaking original cover. |
| Water-pump bolt kit | Replacement fixings for fitting the pump and cover without reusing worn or damaged original bolts. |
Before replacing a TD5 water pump
Coolant leakage or staining around the pump, bearing noise, free play or poor coolant circulation can indicate pump trouble. Check the pump cover, auxiliary belt drive, hoses, thermostat and general coolant condition where the cause has not yet been confirmed.
Related TD5 cooling sections
| Section | Use it for |
|---|---|
| TD5 engine cooling parts | Radiators, hoses, thermostats, expansion tanks, coolant pipes and wider TD5 cooling-system parts. |
| TD5 thermostats | Compare replacement, OEM and Genuine Land Rover thermostats for Defender TD5 and Discovery 2 TD5. |
| Defender cooling-system parts | Defender radiators, hoses, water pumps, thermostats, expansion tanks and cooling-system fittings. |
| Discovery 2 cooling parts | Discovery 2 radiators, hoses, pumps, thermostats, expansion tanks and heater-system parts. |
| Antifreeze and coolant | Coolant concentrate and premix for refilling Land Rover cooling systems after repair or servicing. |
