200TDI & 300TDI Heavy Duty Clutch Kit | Defender, Discovery 1 & Range Rover Classic
£234.00 inc. UK VAT
Secure Checkout
Fast Dispatch
60 Day Returns
Worldwide Delivery
UK Dispatch
Free mainland UK shipping £99+ · Express & worldwide options available
Description
Clutchfix HD1 organic heavy duty clutch kit for Defender, Discovery 1 and Range Rover Classic with 200TDI and 300TDI engines. Supplied as a complete 3-part kit with clutch cover, driven plate and heavy duty release bearing, giving a stronger clutch package for road use, towing and harder-working TDI vehicles.
Clutchfix developed its HD1 organic friction material to cope with increased torque and heat while maintaining stable clutch engagement. Originally developed for heavy haulage and industrial use, the same friction material is now used in Clutchfix uprated Land Rover clutch kits where greater holding capacity is required without moving to a ceramic paddle-style clutch.

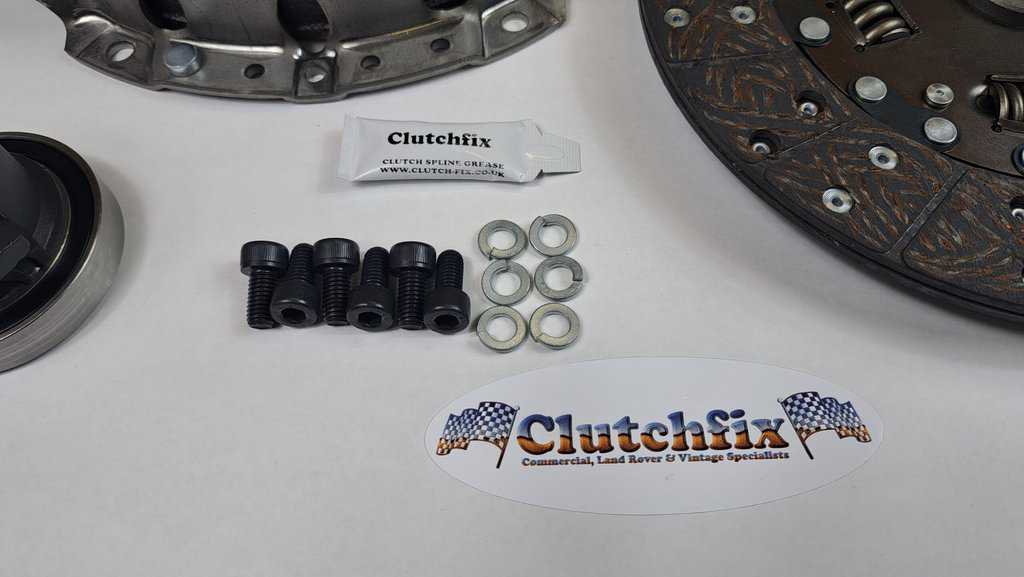

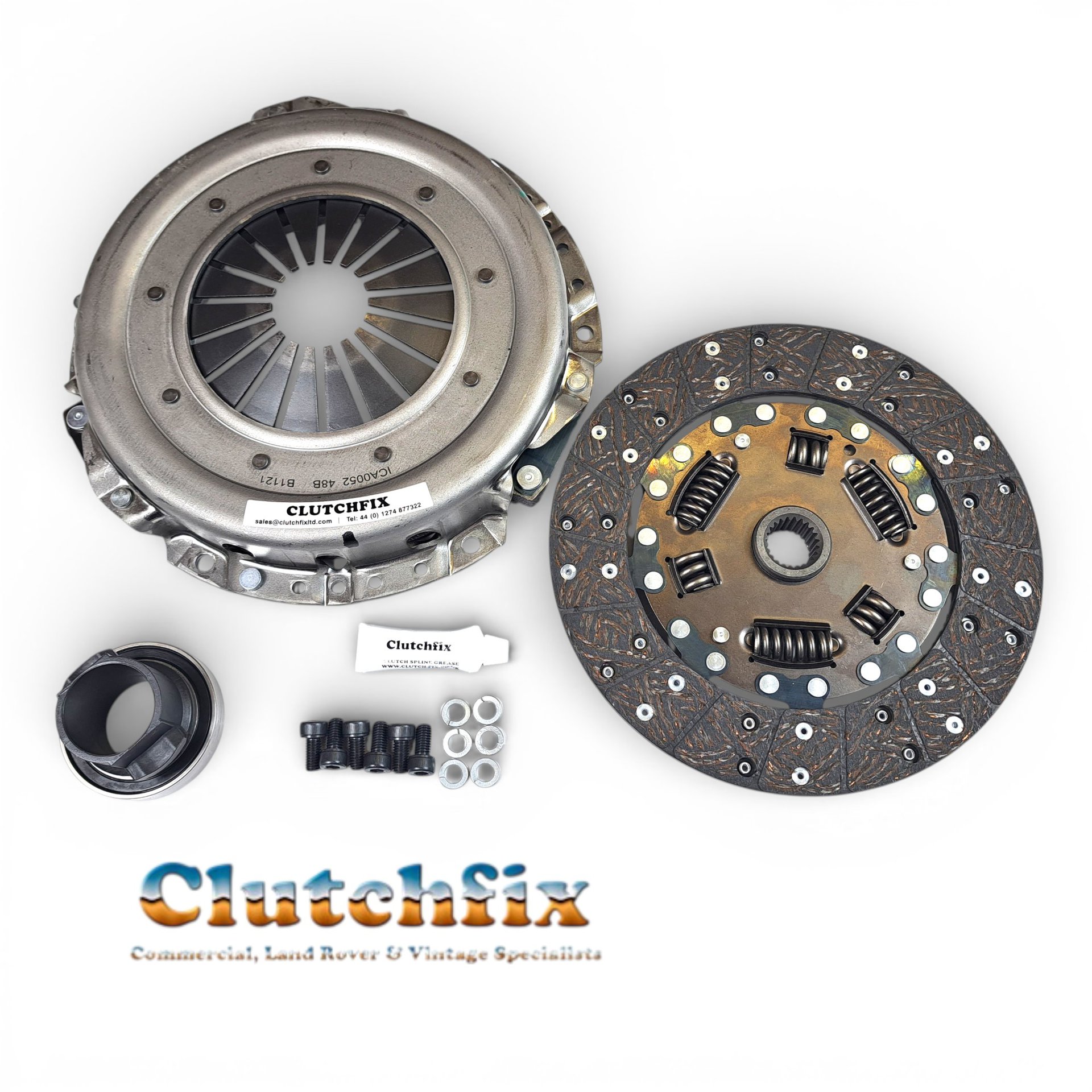

Kit Contents

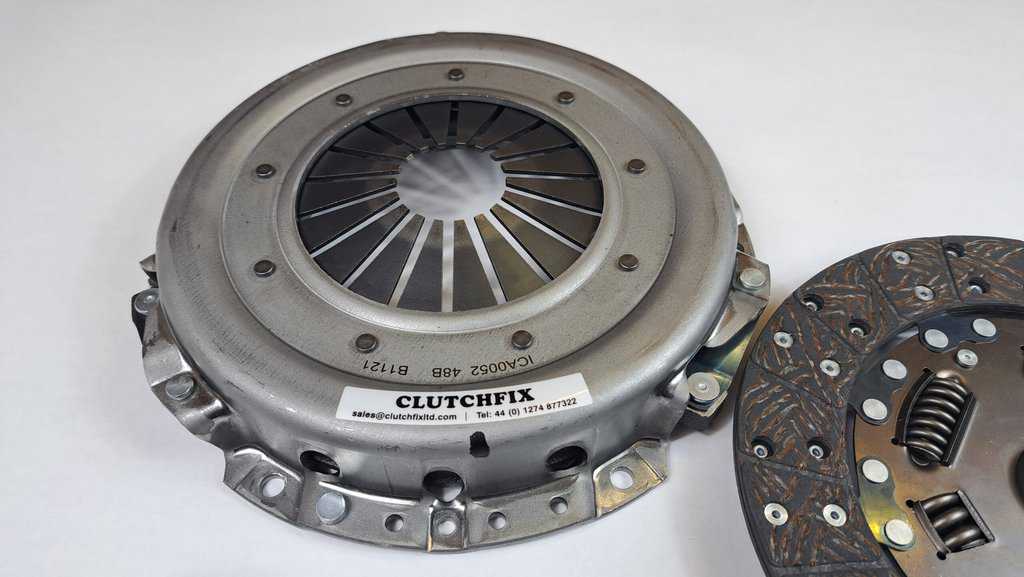

- Heavy duty clutch cover / pressure plate

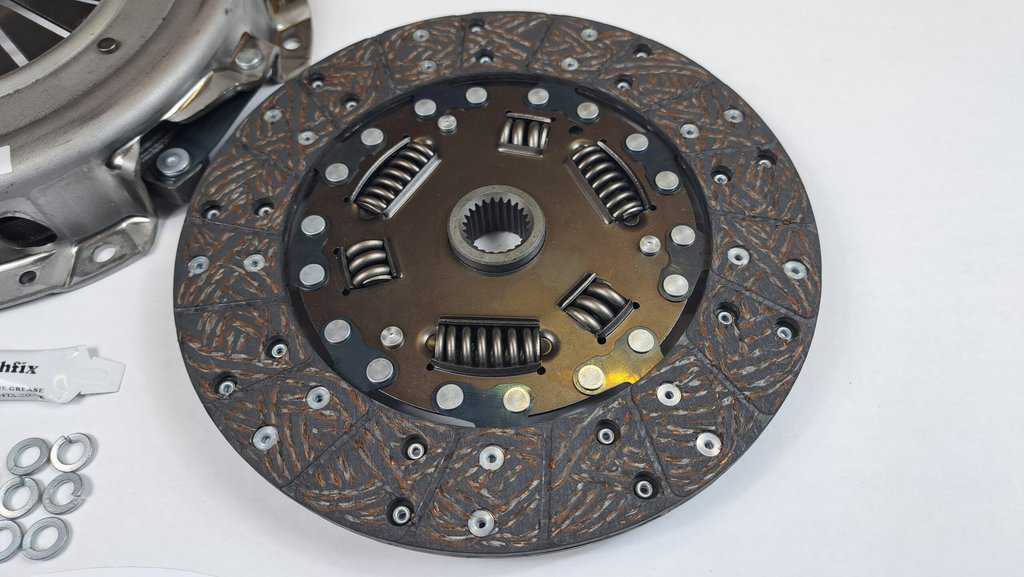

- HD1 organic clutch friction plate / driven plate

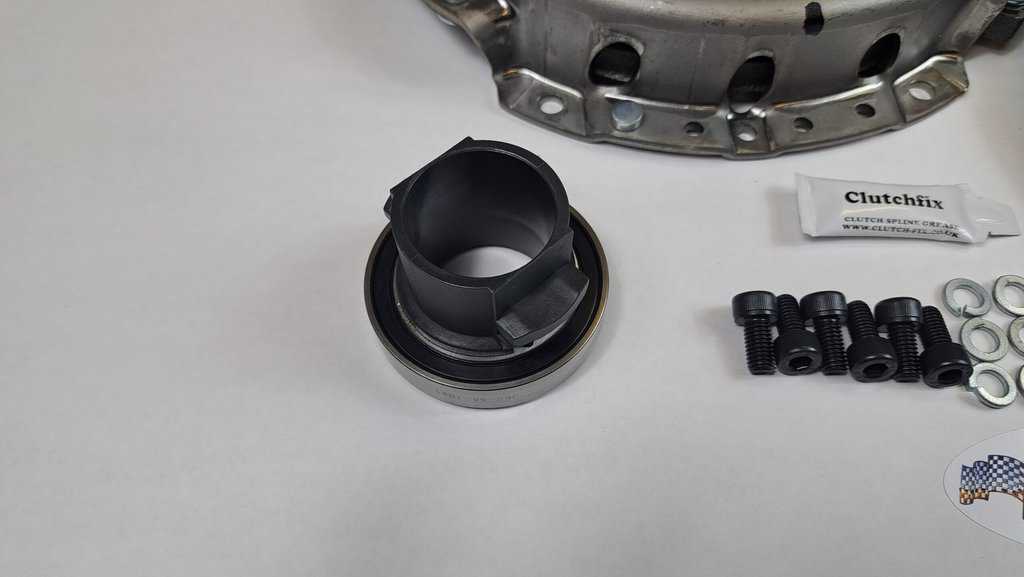

- Heavy duty clutch release bearing
Vehicle Fitment
- Defender 200TDI
- Defender 300TDI
- Discovery 1 200TDI
- Discovery 1 300TDI
- Range Rover Classic 200TDI
- Range Rover Classic 300TDI
Related Clutch Parts
Other components for the same job can be found in Defender clutch parts, Discovery 1 clutch parts and Range Rover Classic clutch parts.
Additional information
| Weight | 15 kg |
|---|---|
| Dimensions | 50 × 50 × 25 cm |
Brand
Brand
Clutchfix Heavy Duty Clutches
Clutchfix heavy duty clutches for Defender, Discovery 1, Discovery 2 and Range Rover Classic, covering 500Nm and 650Nm TD5 clutches, a complete TD5 solid flywheel conversion, and uprated clutch kits for 200TDI, 300TDI and 2.8 TGV engines.
Clutchfix is a UK clutch specialist with a background in commercial, heavy duty and specialist clutch engineering. Its Land Rover range uses uprated pressure plates and HD1 organic friction material, with different clutch specifications developed around engine output, flywheel setup and intended use.
Why Clutchfix?
Clutchfix specialises in clutch engineering rather than simply supplying standard replacement kits. Clutch rebuilding, modification and uprating form a major part of the business, and its heavy duty Land Rover clutches are developed around the additional torque and heat generated by remapped, converted and harder working vehicles.
A major part of the uprated clutch design is the pressure plate. Clutchfix modifies the diaphragm spring to increase clamp load, while its HD1 organic friction material was originally developed for heavy haulage and industrial use before being adopted for uprated Land Rover clutch applications. The result is a range of organic road clutches with different capacities rather than one generic heavy duty specification.
Clutchfix Land Rover clutch range
| Clutch | Designed for |
|---|---|
| TD5 500Nm dual mass flywheel clutch | Remapped, towing and harder working Defender TD5 and Discovery 2 TD5 models retaining the dual mass flywheel |
| TD5 650Nm dual mass flywheel clutch | VNT conversions and other higher torque TD5 builds requiring additional clutch capacity while retaining the dual mass flywheel |
| TD5 500Nm solid flywheel kit | Complete heavy duty clutch and solid flywheel conversion replacing the original TD5 dual mass flywheel setup |
| 200TDI and 300TDI heavy duty clutch | Uprated organic clutch kit for Defender, Discovery 1 and Range Rover Classic TDI models |
| 2.8 TGV heavy duty clutch | The strongest TDI clutch kit in the Twinwoods range, originally developed around the higher torque 2.8 TGV engine |
Find the right Clutchfix clutch
TD5 with dual mass flywheel
The 500Nm clutch covers remapped, towing and harder working TD5s retaining the standard dual mass flywheel setup.
Higher-torque or VNT TD5
The 650Nm clutch provides additional capacity for VNT conversions and other higher-output TD5 builds.
TD5 solid flywheel conversion
The 500Nm solid flywheel kit replaces the clutch and original dual mass flywheel together as a matched conversion.
200TDI, 300TDI and 2.8 TGV
The TDI range includes the regular HD1 heavy duty clutch and the stronger 2.8 TGV-derived clutch for higher-torque engines.
Related clutch sections
| Section | Use it for |
|---|---|
| Heavy Duty TD5 Clutches | 500Nm and 650Nm TD5 clutches, solid flywheel conversion kits and related flywheel parts |
| Defender Clutch Parts | Clutch kits and related manual transmission parts for Defender models |
| Discovery 1 Clutch Parts | 200TDI and 300TDI clutch parts and kits for Discovery 1 |
| Discovery 2 Clutch Parts | TD5 clutch components and kits for Discovery 2 |
| Range Rover Classic Clutch Parts | 200TDI and 300TDI clutch parts and kits for Range Rover Classic |
