TD5 Stainless Oil Feed & Drain Upgrades
TD5 stainless oil feed and drain upgrades for Defender and Discovery 2, including a complete turbo feed-and-drain kit, two-piece turbo drain pipe, stainless turbo feed banjo bolt and braided alternator oil feed hose.
Start with the pipework being replaced. The complete turbo kit renews both the turbo oil feed and drain, the drain pipe is available separately, the stainless banjo bolt is an additional part, and YKL100120SS supplies oil to the vacuum pump on the alternator.
Showing all 4 resultsSorted by popularity
Find the right TD5 stainless oil pipe upgrade
The turbo oil feed, turbo oil drain and alternator vacuum-pump feed are separate parts of the TD5 lubrication system. Match the replacement to the pipe or connection being worked on rather than treating all four products as one kit.
| Job | Best place to start | Check before ordering |
|---|---|---|
| Renew the turbo feed and drain together | Complete TD5 turbo oil feed-and-drain kit | Includes the braided turbo feed pipe, two-piece stainless drain pipe and sealing washers; the stainless feed banjo bolt is separate |
| Replace the turbo drain pipe only | PNH101840SS two-piece stainless drain pipe | Supplied with the turbo drain gasket and sealing washers, but not the turbo oil feed pipe |
| Replace the turbo feed banjo bolt | SYG100510SS stainless banjo bolt | Replaces the original SYG100510L bolt at the turbo oil feed connection |
| Replace the alternator oil feed hose | YKL100120SS stainless braided hose | For TD5 vehicles using the vacuum-pump alternator layout; this is not part of the turbo oil pipework |
Check which TD5 oil pipe is being replaced
Complete turbo pipe kit
The full kit replaces both the rigid turbo oil feed pipe and the original turbo oil drain pipe with braided and stainless components.
The full kit replaces both the rigid turbo oil feed pipe and the original turbo oil drain pipe with braided and stainless components.

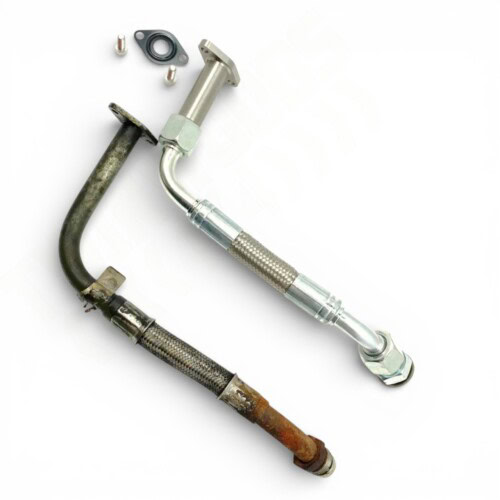

Turbo drain pipe only
PNH101840SS is the two-piece drain assembly only. It includes its drain gasket and sealing washers but no turbo feed hose.
PNH101840SS is the two-piece drain assembly only. It includes its drain gasket and sealing washers but no turbo feed hose.

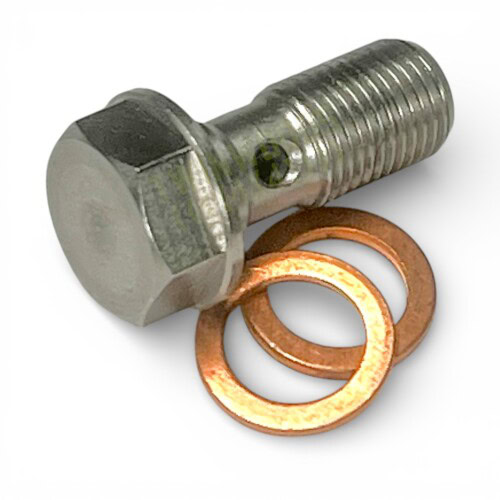

Turbo feed banjo bolt
SYG100510SS replaces the mild-steel bolt at the turbo feed connection and remains separate from the standard complete pipe kit.
SYG100510SS replaces the mild-steel bolt at the turbo feed connection and remains separate from the standard complete pipe kit.
Alternator vacuum-pump hose
YKL100120SS replaces the oil feed pipe serving the vacuum pump mounted on the alternator. Check the alternator layout and existing pipe routing.
YKL100120SS replaces the oil feed pipe serving the vacuum pump mounted on the alternator. Check the alternator layout and existing pipe routing.
What each stainless upgrade covers
| Product | Replaces or supplies | Included parts |
|---|---|---|
| Complete turbo feed-and-drain kit | Turbo feed pipe PNP101280 and turbo drain pipe PNH101840 | Two-piece stainless drain pipe, braided turbo feed hose, crush washers and Dowty washers |
| PNH101840SS drain pipe | Original TD5 turbo oil drain pipe | Two-piece stainless drain assembly, ADU6847L drain gasket and PNT100030 sealing washers |
| SYG100510SS banjo bolt | Original turbo feed banjo bolt SYG100510L | Stainless steel banjo bolt for the turbo oil feed connection |
| YKL100120SS alternator hose | Alternator vacuum-pump oil feed pipe YKL100120 | Flexible stainless braided replacement hose |
