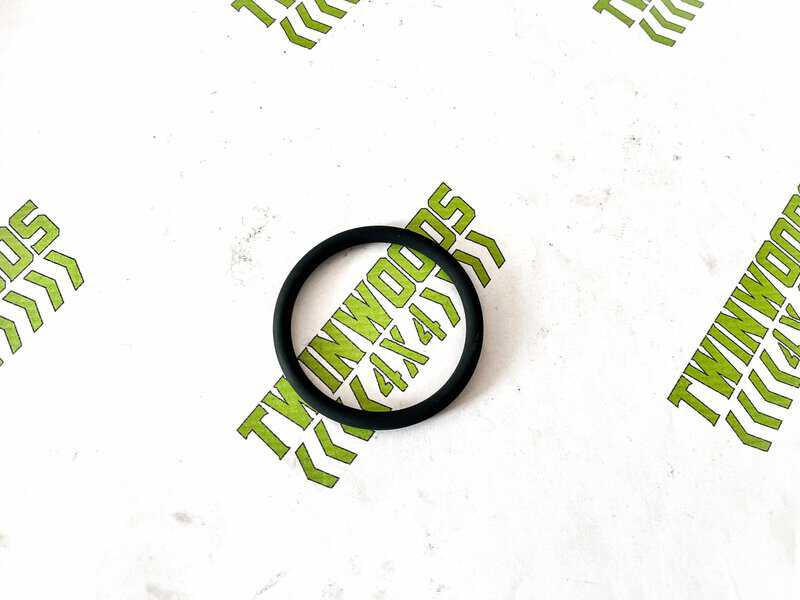

LDI100030 Seal | Td5 Front Camshaft Cover O-Ring Upgrade – Viton
Viton upgrade O-ring for the Td5 front camshaft oil seal carrier LDI100030. This seal fits between the LDI100030 carrier and the cylinder head, helping to reduce repeat oil seepage from the front camshaft seal housing on Defender and Discovery 2 Td5 engines.
- Fits Land Rover Td5 engines in Defender and Discovery 2 applications
- Upgrade O-ring for the LDI100030 front camshaft oil seal carrier
- Made from high-temperature Viton rubber and slightly thicker than the standard-style O-ring
- Does not alter the main camshaft oil seal safety function
£4.90 inc. UK VAT
In stock - ready for immediate dispatch
Family-run Land Rover parts specialist supplying Genuine, OEM & trusted aftermarket parts.
Free mainland UK shipping £99+ · Express options available
Worldwide Tracked Delivery Available
Description
Td5 front camshaft cover O-ring upgrade for LDI100030
This Viton O-ring is an upgraded seal for the LDI100030 front camshaft oil seal carrier used on Land Rover Td5 engines. It seals the carrier to the cylinder head on Defender and Discovery 2 Td5 models.
The original-style O-ring can harden, flatten or start to seep, leaving oil running down the front of the engine. This upgraded seal is made from high-temperature Viton rubber and is slightly thicker than the standard-style seal, giving a more reliable seal between the carrier and the head.
Clean the groove in the LDI100030 carrier carefully before fitting, and use a light smear of O-ring grease or clean engine oil to help the seal seat correctly. The upgraded O-ring is a tight fit by design. If the plastic LDI100030 carrier is warped, cracked or distorted, replace the complete carrier and fit this upgraded seal in place of the thin O-ring supplied with it.
This O-ring only improves the seal between the LDI100030 carrier and the cylinder head. It does not change how the main front camshaft oil seal behaves. Do not modify the camshaft seal arrangement to force a permanent seal, as the front camshaft oil seal is designed to move if crankcase pressure becomes excessive.

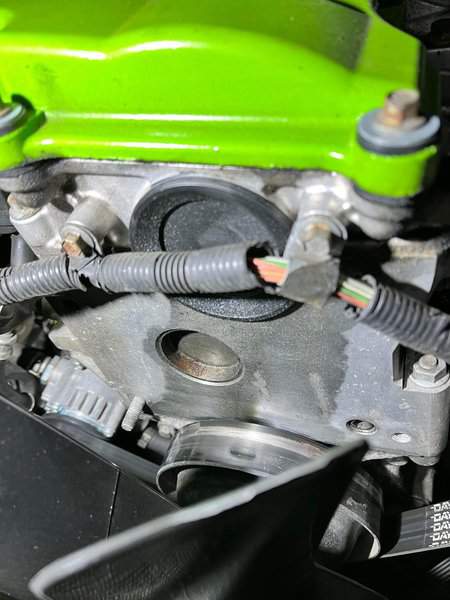

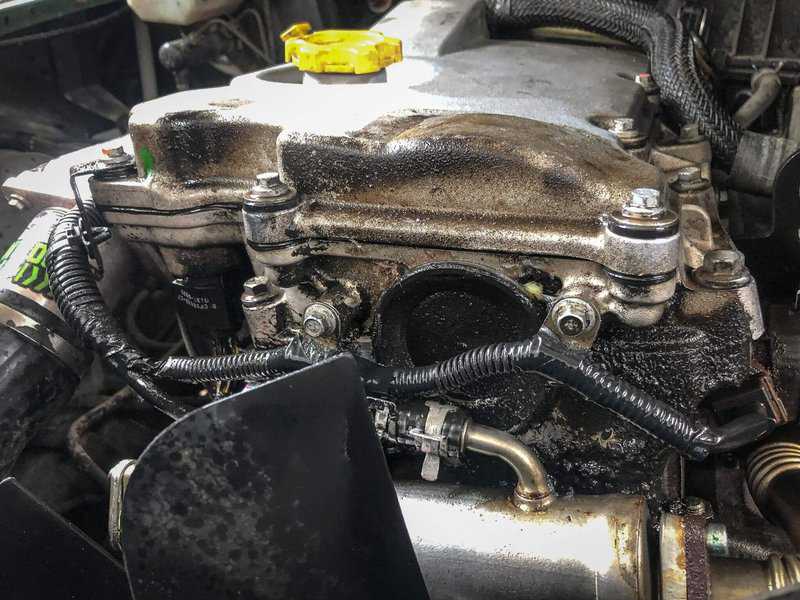

The supporting images show typical oil leakage from the Td5 front camshaft seal carrier area, including a standard replacement that had started leaking again after only a few months.
If the carrier itself needs replacing, see the TD5 front camshaft oil seal LDI100030. For related oil leak parts, browse our Td5 engine oil leak gaskets and seals. If the rocker cover is already coming off, you may also need the late Td5 rocker cover gasket LVP000020G.
- Part number / SKU: LDI100030SEAL
- Related carrier part number: LDI100030
- Engine: Land Rover Td5
- Fits: Defender Td5
- Fits: Discovery 2 Td5
- Material: Viton rubber
- Application: Front camshaft oil seal carrier to cylinder head
- Supplied as: Single upgraded O-ring
Additional information
| Weight | 0.05 kg |
|---|---|
| Dimensions | 10 × 10 × 1 cm |
Brand
Brand
Twinwoods 4x4
Twinwoods 4x4 own-brand products are Land Rover parts, fitting kits and upgrades that we have specified, assembled or had made for practical repair and maintenance jobs.
This range includes job-specific hardware kits, sealing parts, exhaust fitting kits and small workshop-led upgrades designed to make common Defender, Discovery and Td5 jobs easier to complete with the right parts in one place.
Twinwoods 4x4 own products and workshop-led kits
These products sit alongside our main branded Land Rover parts range. They are used where a complete kit, improved part choice or clearer specification is more useful than buying individual catalogue parts separately. The range is focused on practical Land Rover repair work rather than generic accessories, with parts selected around the jobs we know and the problems we regularly see on Defender, Discovery and Td5 vehicles.
