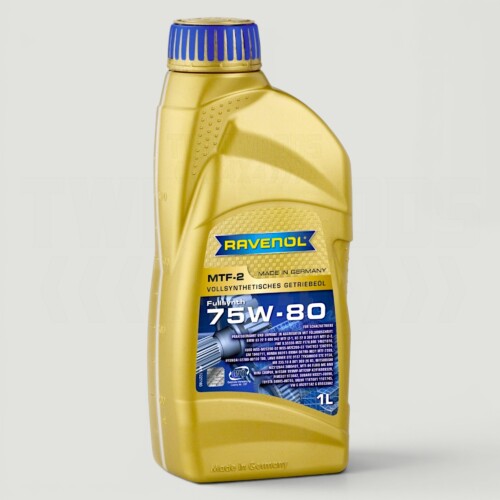

Ravenol MTF-94 R380 Gearbox Oil 75W-80 – 1L
Ravenol MTF-2 75W-80 fully synthetic gearbox oil for Land Rover R380 manual gearboxes requiring MTF-94 fluid. The PAO-based GL-4 / MT-1 formulation combines good cold-shift behaviour with strong shear stability and wear protection under load.
- For Land Rover R380 manual gearboxes requiring MTF-94 fluid
- PAO-based fully synthetic SAE 75W-80 transmission oil
- API GL-4 / API MT-1; references STC9157, STC9158 and TYK500030
- 1L bottle with built-in easy-pour spout; three bottles normally cover an R380 gearbox oil change
£22.56 inc. UK VAT
In stock - ready for immediate dispatch
Family-run Land Rover parts specialist supplying Genuine, OEM & trusted aftermarket parts.
Free mainland UK shipping £99+ · Express options available
Worldwide Tracked Delivery Available
Description
Ravenol MTF-2 SAE 75W-80 is a PAO-based fully synthetic manual transmission oil for Land Rover R380 gearboxes requiring MTF-94 fluid. It carries API GL-4 and API MT-1 specifications and corresponds with Land Rover references STC9157, STC9158 and TYK500030. The low-viscosity formulation supports clean gear changes in cold conditions while maintaining a stable lubricating film, shear stability and wear protection under high mechanical and thermal load.
Why We Recommend Ravenol MTF-2 for R380 Gearboxes
The R380 needs the correct MTF-94 manual transmission fluid rather than the oil used in the LT230 transfer box or Rover differentials. Ravenol MTF-2 combines the required 75W-80 GL-4 formulation with good low-temperature shift behaviour and strong protection at operating temperature. It is a quality-led fully synthetic oil for routine R380 servicing, not simply a generic gearbox oil chosen by viscosity alone.
An R380 gearbox oil change normally uses approximately 2.5L, so three 1L bottles cover the normal service fill. The 1L container also has a built-in easy-pour spout to make filling through the side of the gearbox less awkward.
Specifications and Land Rover References
- Product: Ravenol MTF-2 SAE 75W-80
- Viscosity: SAE 75W-80
- Oil type: PAO-based fully synthetic
- Specifications: API GL-4, API MT-1
- Fluid recommendation: Land Rover, MG and MINI MTF-94 fluid
- Land Rover references: STC9157, STC9158, TYK500030
- Pack size: 1L
- Ravenol article number: 1221103-001
Technical Data
| Property | Unit | Data | Audit |
|---|---|---|---|
| Colour | gelbbraun | VISUELL | |
| Viscosity at 100 °C | mm²/s | 9,1 | DIN 51659-2 |
| Viscosity at 40 °C | mm²/s | 50,8 | DIN 51659-2 |
| Viscosity Index VI | 163 | DIN ISO 2909 | |
| Brookfield Viscosity at -40 °C | mPa*s | 21.900 | ASTM D2983 |
| Copper Strip Test at 121 °C | 1b | ASTM D130 | |
| Density at 20 °C | kg/m³ | 847,5 | EN ISO 12185 |
| Flashpoint | °C | 248 | DIN EN ISO 2592 |
| Pourpoint | °C | -51 | DIN ISO 3016 |
Related Gearbox Oils
See the MTF-94 gearbox oil section for other pack sizes, or the wider Land Rover gear oil range for LT230 transfer-box and differential oils.
Additional information
| Weight | 1 kg |
|---|---|
| Dimensions | 20 × 10 × 7 cm |
Brand
Brand
Ravenol
Ravenol oils and fluids for Land Rover servicing
Ravenol is a quality-led lubricant range for Land Rover engine, gearbox, transfer box, axle, steering, ACE, brake and cooling-system service work. Use this page to browse the Ravenol products we stock for Defender, Discovery, Freelander and Range Rover applications. Oil and fluid choice should be matched to the vehicle, component and required specification, not just the viscosity printed on the bottle. Check the product page for the relevant approvals, GL rating, application notes and Land Rover use before ordering.- For engine service work, see Land Rover engine oil, including VW 505.01 engine oil ideal for Td5 applications.
- For gearboxes, transfer boxes and axles, see Land Rover gear oil.
- For automatic gearboxes, power steering and related hydraulic fluids, see ATF and steering fluid.
- For brake servicing, see Land Rover brake fluid.
- For cooling-system work, see Land Rover antifreeze and coolant.
