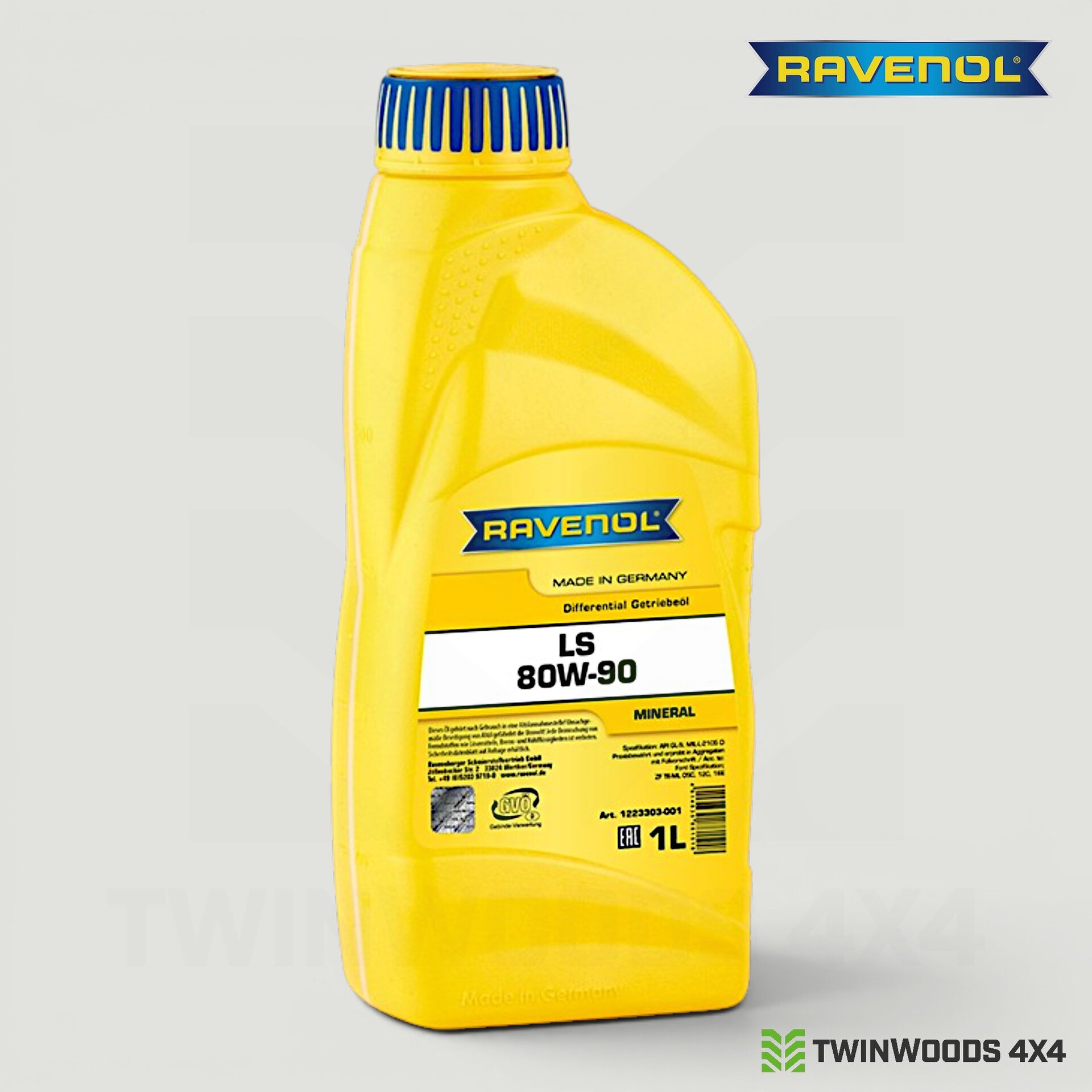

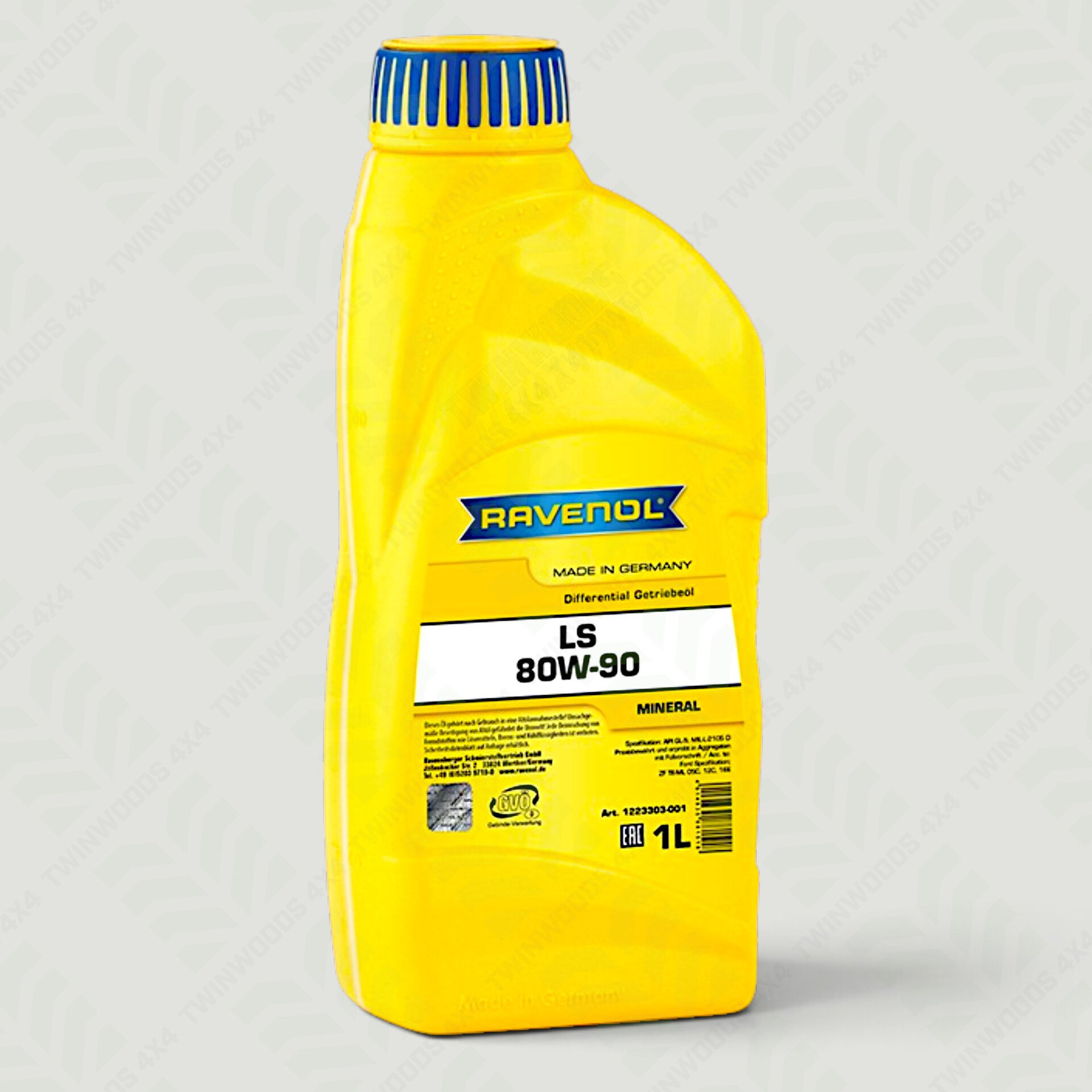

RAVENOL LS 80W-90 GL-5 Limited Slip Differential Oil – 1L
RAVENOL LS 80W-90 is a mineral GL-5 differential oil with limited-slip friction characteristics for compatible LSDs requiring an SAE 80W-90 lubricant. It also suitable for standard Rover differentials requiring conventional 80W-90 GL-5 axle oil.
- Dedicated mineral 80W-90 oil for compatible limited-slip differentials
- API GL-5 with strong extreme-pressure protection for hypoid gears
- Also suitable for standard Rover differentials requiring 80W-90 GL-5
- 1L bottle for axle servicing and differential oil changes
£18.60 inc. UK VAT
In stock - ready for immediate dispatch
Family-run Land Rover parts specialist supplying Genuine, OEM & trusted aftermarket parts.
Free mainland UK shipping £99+ · Express options available
Worldwide Tracked Delivery Available
Description
RAVENOL LS 80W-90 is a mineral hypoid gear oil with limited-slip friction characteristics, developed for differentials working under high loads and requiring SAE 80W-90 GL-5 lubricant. For Land Rover use, its main role is as the dedicated 80W-90 oil for compatible limited-slip differentials, while remaining fully suitable for conventional Rover axles where 80W-90 API GL-5 is specified.
80W-90 Oil for Limited-Slip Differentials
Plate-type limited-slip differentials can depend on the correct friction behaviour as well as the extreme-pressure protection required by the crown wheel and pinion. RAVENOL LS combines those limited-slip characteristics with a pressure-resistant lubricating film, strong wear protection, oxidation resistance and good adhesion to heavily loaded gear surfaces.
The presence of an upgraded differential does not automatically mean LS oil is required. ATB, helical and locking differentials can have different lubrication requirements, so the differential manufacturer’s specification remains the deciding factor. Where an 80W-90 limited-slip oil is specified, RAVENOL LS 80W-90 has a clear role in the range.
Standard Rover Differentials
RAVENOL LS 80W-90 can also be used in standard open Rover differentials requiring an 80W-90 GL-5 axle oil. For normal open-differential servicing, RAVENOL EPX 80W-90 GL-5 remains our straightforward conventional differential oil, while LS 80W-90 earns its place where limited-slip friction characteristics are specifically required.
Specifications and Recommendations
- SAE viscosity: 80W-90
- Oil type: Mineral
- Specifications: API GL-5, MIL-L-2105 D
- Recommendations: Ford specification, ZF TE-ML 05C, ZF TE-ML 12C, ZF TE-ML 16E
- Pack size: 1L
Technical Data
| Property | Unit | Data | Audit |
|---|---|---|---|
| Colour | Yellow-brown | Visual | |
| Viscosity at 100°C | mm²/s | 17.6 | DIN 51659-2 |
| Viscosity at 40°C | mm²/s | 177.3 | DIN 51659-2 |
| Viscosity Index VI | 108 | DIN ISO 2909 | |
| Brookfield viscosity at -26°C | mPa·s | 114,400 | ASTM D2983 |
| Copper strip test at 121°C | 1b | ASTM D130 | |
| Density at 20°C | kg/m³ | 889.0 | EN ISO 12185 |
| Flashpoint | °C | 214 | DIN EN ISO 2592 |
| Pour point | °C | -33 | DIN ISO 3016 |
Related Differential Oils
For standard Rover differentials requiring conventional 80W-90 GL-5, see RAVENOL EPX 80W-90. For specialist and high-performance differentials, see our ATB & Limited Slip Differential Oil section.
Additional information
| Weight | 1 kg |
|---|---|
| Dimensions | 30 × 20 × 15 cm |
Brand
Brand
Ravenol
Ravenol is our main lubricant brand for Land Rover servicing, covering engine oils, manual and automatic gearboxes, transfer boxes, differentials, ACE and power steering, brake fluid, coolant, grease and specialist workshop fluids.
We use Ravenol because the range lets us select the lubricant around the actual engine, gearbox, axle or hydraulic system rather than relying on viscosity alone. The result is a deliberately selected Land Rover range in which every product has a defined job, from TD5 engine oil and R380 MTF-94 to specialist ZF ATF, LT230 oil, limited-slip differential oil and later transfer-box fluids.
Why Twinwoods partners with Ravenol
Ravenol is a genuine German lubricant manufacturer, developing and producing its oils, fluids and greases in Germany. The range is backed by unusually detailed technical data, which matters to us because lubricant choice should be based on much more than the viscosity printed on the bottle.
We use Ravenol in our service kits, recommend it for the Land Rovers we specialise in and use it in vehicles we work on ourselves. More importantly, the range gives us properly specialised products for different engines, gearboxes, transfer boxes, axles and hydraulic systems rather than trying to make one generic lubricant cover everything.
Ravenol oils and fluids for Land Rover
| System | Ravenol products | What matters |
|---|---|---|
| Engine oil | VMO, RUP, Turbo-C HDC, TSi, FO, FLJ, VMP, SFE and Formel Extra | Engine, viscosity, specification, emissions equipment and how the vehicle is used |
| Manual gearboxes | MTF-2 / MTF-94 for the R380 and VSG 75W-90 for the Defender Puma MT82 | Gearbox type and complete lubricant specification rather than viscosity alone |
| Automatic gearboxes | ATF 5/4 HP and ATF Dexron III H | ATF 5/4 HP is our specialist choice for the Discovery 2 ZF 4HP gearbox, while Dexron III H covers compatible general ATF duties |
| Transfer boxes | MZG 80W-90 and VSG 75W-90 for the LT230, plus DTF-1 for compatible later active transfer boxes | Transfer box design and the fluid specification required by that particular unit |
| Axles and differentials | EPX 80W-90, VSG 75W-90, RHP 75W-90, LS 75W-90 and LS 80W-90 | Standard, ATB or limited-slip differential design together with the required viscosity and friction characteristics |
| ACE and power steering | SSF and ATF Dexron III H | Hydraulic system and the correct fluid specification |
| Brakes and clutch | DOT 4 LV and DOT 4 | DOT 4 LV is our main brake and clutch fluid, with conventional DOT 4 retained where appropriate |
| Cooling systems | C12+ OAT and C12evo Si-OAT coolant concentrates | Coolant technology, engine and the fluid already in the cooling system |
| Grease | MoS2 Multi-Purpose Grease, LI-86 Bearing & Propshaft Grease and HRG 2 Hot Red Grease | MoS2 for broad workshop and driveline use, LI-86 for bearings and universal joints, and HRG 2 for high-temperature grease duties |
| Workshop fluids | Professional Engine Cleaner and Winter Screenwash Concentrate | Purpose-specific maintenance products alongside the main lubricant range |
More than the correct number on the bottle
Two oils carrying the same viscosity grade can be very different products. Base oil, additive chemistry, volatility, viscosity stability, friction characteristics and manufacturer specifications all affect how a lubricant behaves once it is hot and working inside the component.
That is particularly important with Land Rovers. An R380 gearbox, LT230 transfer box, Rover differential, ZF automatic gearbox and electronically controlled later transfer box all place different demands on their lubricant. We select the Ravenol product around the component itself rather than simply finding the nearest familiar viscosity.
Identify the component
Start with the engine, gearbox, transfer box, differential or hydraulic system being serviced.
Match the specification
Check the complete ACEA, API, GL, manufacturer or transmission-fluid requirement rather than viscosity alone.
Consider vehicle use
Standard servicing, towing, off-road use and highly tuned engines can place very different demands on the lubricant.
Check existing fluid
Coolant, hydraulic fluids and specialist transmission oils should not be mixed simply because their colour or general description appears similar.
Ravenol engine oil
Our Ravenol engine-oil range runs from traditional oils for 200TDI, 300TDI and classic petrol engines through to specialist oils for TD5, Defender Puma TDCI and later Land Rover engines. Ravenol VMO 5W-40 remains our main TD5 recommendation, RUP 5W-40 covers very highly tuned TD5 engines, Turbo-C HDC 15W-40 is our preferred oil for standard 200TDI and 300TDI engines, while FO, FLJ, VMP and SFE cover the relevant later engine and emissions-system requirements.
Related Ravenol and oil sections
| Section | Use it for |
|---|---|
| Oils, Grease & Fluids | The complete Twinwoods lubricant, coolant and service-fluid range |
| Engine Oil | Engine oils selected around Land Rover engines, viscosity and specification |
| Gear Oil | R380, MT82, LT230, differential and specialist transfer-box oils |
| ATF & Steering Fluid | Automatic transmission and power-steering fluids |
| ACE Fluid | Discovery 2 Active Cornering Enhancement hydraulic fluid |
| Antifreeze & Coolant | OAT and Si-OAT coolant for different generations of Land Rover |
| Brake Fluid | DOT 4 and DOT 4 LV brake and clutch fluids |
| Land Rover Grease | Grease for propshafts, universal joints, bearings, high-temperature use and general workshop lubrication |
