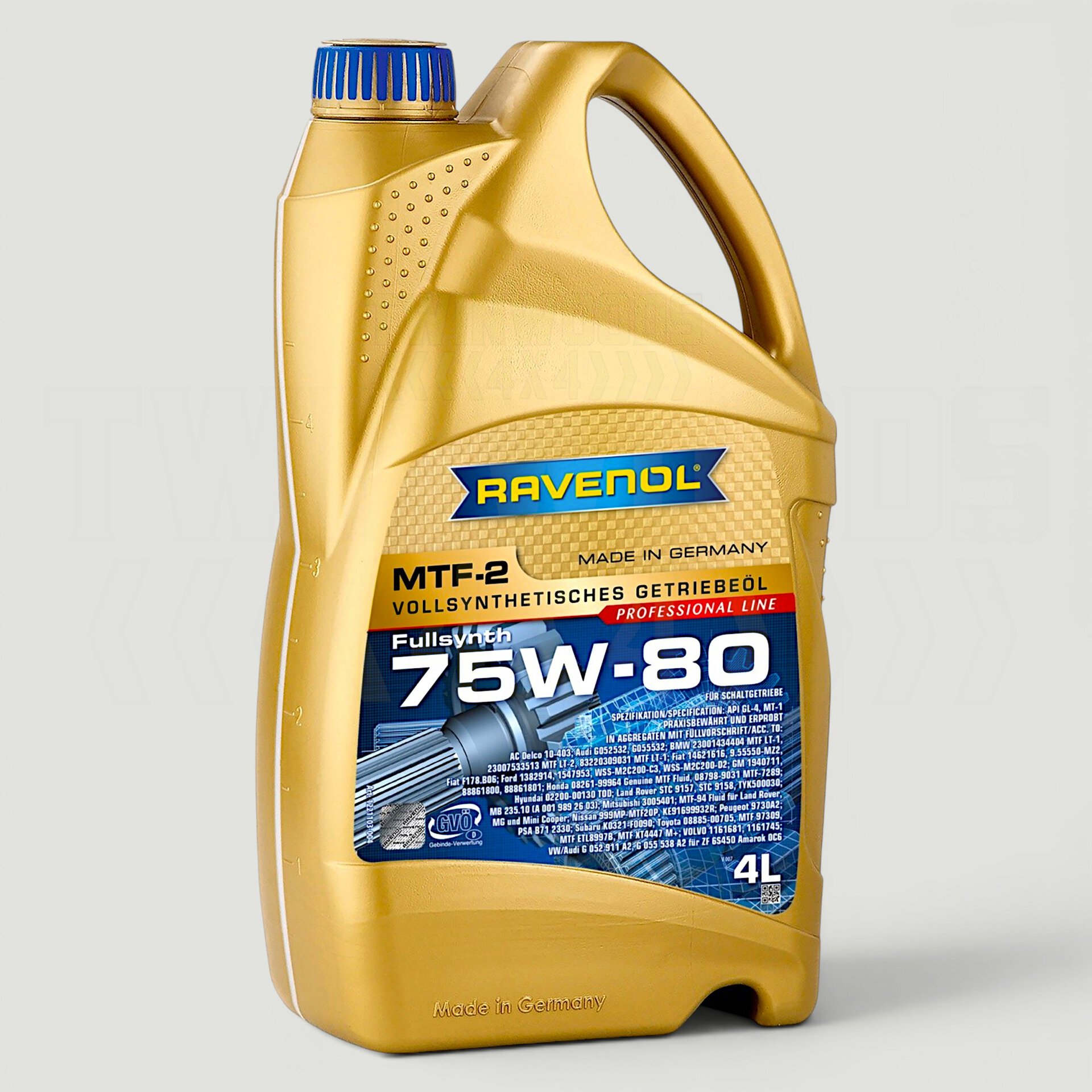

Ravenol MTF-94 R380 Gearbox Oil 75W-80 – 4L
Ravenol MTF-2 75W-80 fully synthetic gearbox oil for Land Rover R380 manual gearboxes requiring MTF-94 fluid. The 4L pack provides enough oil for one normal R380 gearbox service, with approximately 1.5L remaining.
- For Land Rover R380 manual gearboxes requiring MTF-94 fluid
- PAO-based fully synthetic SAE 75W-80 transmission oil
- API GL-4 / API MT-1; references STC9157, STC9158 and TYK500030
- 4L pack covers the approximately 2.5L required for a normal R380 oil change
£53.65 inc. UK VAT
Normal Stock Item
Family-run Land Rover parts specialist supplying Genuine, OEM & trusted aftermarket parts.
Free mainland UK shipping £99+ · Express options available
Worldwide Tracked Delivery Available
Description
Ravenol MTF-2 SAE 75W-80 is a PAO-based fully synthetic manual transmission oil for Land Rover R380 gearboxes requiring MTF-94 fluid. It carries API GL-4 and API MT-1 specifications and corresponds with Land Rover references STC9157, STC9158 and TYK500030. An R380 oil change normally requires approximately 2.5L, making the 4L pack enough for a complete gearbox service with around 1.5L remaining.
Why We Recommend Ravenol MTF-2 for R380 Gearboxes
The R380 needs the correct MTF-94 manual transmission fluid rather than the oils used in LT230 transfer boxes or Rover differentials. Ravenol MTF-2 combines the required 75W-80 GL-4 formulation with good cold-shift behaviour, strong shear stability and a stable lubricating film under high mechanical and thermal load.
The larger 4L container is the straightforward pack for a complete R380 gearbox oil change. It avoids buying three separate 1L bottles while leaving spare oil available for topping up or future servicing.
Specifications and Land Rover References
- Product: Ravenol MTF-2 SAE 75W-80
- Viscosity: SAE 75W-80
- Oil type: PAO-based fully synthetic
- Specifications: API GL-4, API MT-1
- Fluid recommendation: Land Rover, MG and MINI MTF-94 fluid
- Land Rover references: STC9157, STC9158, TYK500030
- Pack size: 4L
- Ravenol article number: 1221103-004
Technical Data
| Property | Unit | Data | Audit |
|---|---|---|---|
| Colour | gelbbraun | VISUELL | |
| Viscosity at 100 °C | mm²/s | 9,1 | DIN 51659-2 |
| Viscosity at 40 °C | mm²/s | 50,8 | DIN 51659-2 |
| Viscosity Index VI | 163 | DIN ISO 2909 | |
| Brookfield Viscosity at -40 °C | mPa*s | 21.900 | ASTM D2983 |
| Copper Strip Test at 121 °C | 1b | ASTM D130 | |
| Density at 20 °C | kg/m³ | 847,5 | EN ISO 12185 |
| Flashpoint | °C | 248 | DIN EN ISO 2592 |
| Pourpoint | °C | -51 | DIN ISO 3016 |
Related Gearbox Oils
The 1L Ravenol MTF-94 gearbox oil remains available for smaller quantities and topping up. See the wider MTF-94 gearbox oil section for both pack sizes.
Additional information
| Weight | 5 kg |
|---|---|
| Dimensions | 30 × 30 × 25 cm |
