Discovery 2 TD5 Manual Performance Intercooler – AIRTEC Motorsport | ATINTLR01
£504.14 inc. UK VAT
Available to order — usually dispatched within 24 hours
Secure Checkout
Fast Dispatch
60 Day Returns
Worldwide Delivery
UK Dispatch
Free mainland UK shipping £99+ · Express & worldwide options available
Recommended:
1 × Discovery 2 TD5 Silicone Intercooler Hose Set – Terrafirma Black | TF739
Available to order — usually dispatched within 24 hours
Original price was: £67.69.£64.31Current price is: £64.31. inc. UK VAT
Description

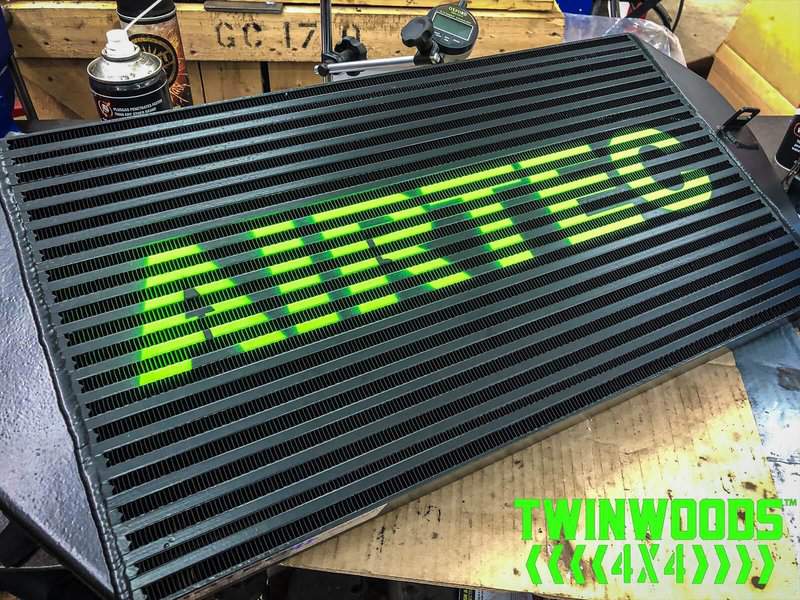

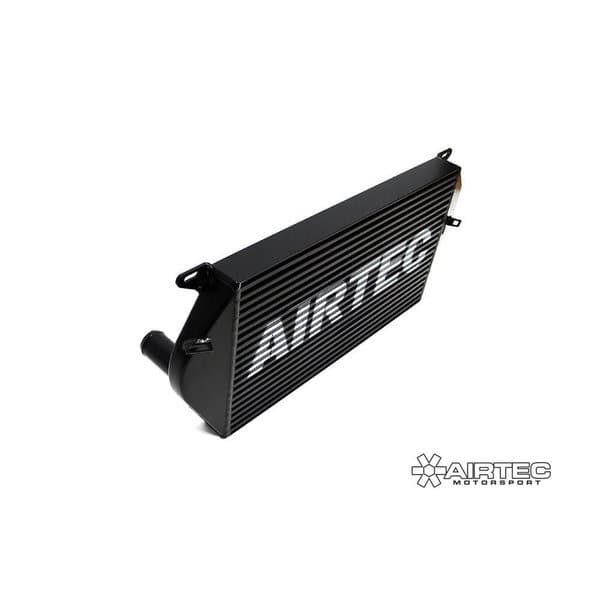

AIRTEC Motorsport performance intercooler for manual Discovery 2 TD5 models, replacing the smaller standard intercooler with a much larger 810 x 350 x 60mm bar-and-plate core. The increased core size provides greater charge-air cooling capacity for tuned, remapped, towing and hard-worked TD5 engines, while the original 50mm boost hose connections are retained.
A particularly strong feature of the AIRTEC design is its flowed cast end tanks rather than the fabricated sheet-metal tanks used on many aftermarket intercoolers. The cast construction allows the internal shape to be designed around airflow into and out of the core, as well as giving a stronger and more rigid end-tank construction with fewer fabricated panels and welded joints.
Product Details
- 810mm wide x 350mm high x 60mm deep intercooler
- Large bar-and-plate core
- Flowed cast end tanks
- CAD-designed end tanks to optimise airflow through the intercooler
- 50mm inlet and outlet connections for the standard Discovery 2 TD5 boost hoses
- Designed as a direct replacement in the original intercooler position
- Supplied with polyurethane mounting bushes and M8 mounting fixings
- Fitting instructions included
- AIRTEC Motorsport part number ATINTLR01
Vehicle Fitment
- Discovery 2 TD5 with manual transmission
ATINTLR01 is the manual-transmission Discovery 2 intercooler. Automatic models have the original transmission cooler occupying the required space, and AIRTEC now lists a separate automatic-transmission intercooler under part number ATINTLR07.
Additional information
| Weight | 13 kg |
|---|---|
| Dimensions | 95 × 25 × 60 cm |
Brand
Brand
Airtec Motorsport
AIRTEC Motorsport performance intercoolers for Defender, Discovery and Range Rover Classic, covering 200TDI, 300TDI, TD5 and Puma TDCI engines.
AIRTEC intercoolers use large bar-and-plate cores with flowed cast end tanks, giving a strong, well-finished alternative to the fabricated sheet-metal designs common on many aftermarket intercoolers. Twinwoods stocks AIRTEC where the larger core and vehicle-specific fitment make sense for tuned, remapped and hard-worked Land Rovers.
AIRTEC Performance Intercoolers
AIRTEC Motorsport develops vehicle-specific intercoolers with larger cores, increased frontal area and greater cooling capacity than the standard units they replace. The Land Rover range includes side-mount upgrades for 200TDI and 300TDI engines, full-width Defender intercoolers and larger intercoolers for TD5 and Puma TDCI models.
One of the features we particularly like is AIRTEC's use of flowed cast aluminium end tanks. Unlike intercoolers built around folded and welded sheet-metal tanks, the cast construction allows the internal shape to be formed around the airflow path through the core while also producing a strong, rigid and tidy finished assembly.
Land Rover AIRTEC Fitment
The AIRTEC intercoolers stocked by Twinwoods cover Defender, Discovery 1, Discovery 2 and Range Rover Classic applications across 200TDI, 300TDI, TD5 and Puma TDCI engines. Individual product pages give the relevant fitment details, installation notes and any manual, automatic or air-conditioning restrictions before ordering.
