Defender TD5 & Puma TDCI Performance Intercooler – AIRTEC Motorsport | ATINTLR05
£551.28 inc. UK VAT
Available to order — usually dispatched within 24 hours
Secure Checkout
Fast Dispatch
60 Day Returns
Worldwide Delivery
UK Dispatch
Free mainland UK shipping £99+ · Express & worldwide options available
Recommended:
1 × Defender TD5 Silicone Intercooler Hose Set – Terrafirma Black | TF737
Available to order — usually dispatched within 24 hours
Original price was: £73.46.£69.79Current price is: £69.79. inc. UK VAT
1 × Defender Puma 2.4 TDCI Silicone Intercooler Hose Set – Terrafirma | TF738
Available to order — usually dispatched within 24 hours
Original price was: £99.80.£94.81Current price is: £94.81. inc. UK VAT
1 × Defender Puma 2.2 TDCI Silicone Intercooler Hoses – Terrafirma | TF746
Available to order — usually dispatched within 24 hours
Original price was: £79.32.£75.35Current price is: £75.35. inc. UK VAT
Description

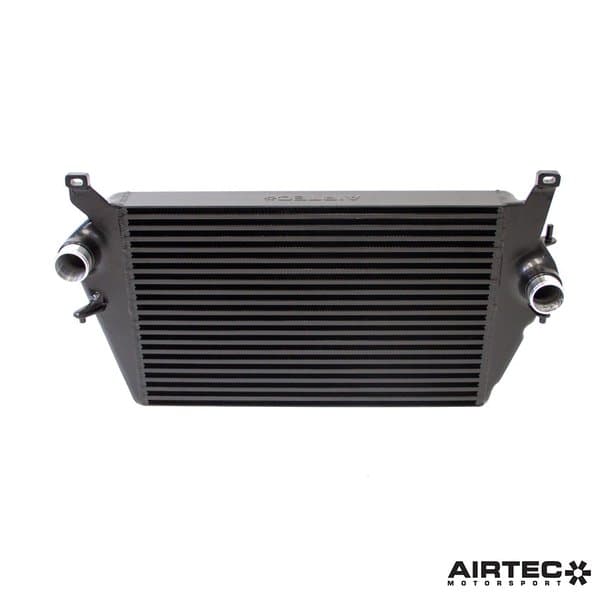

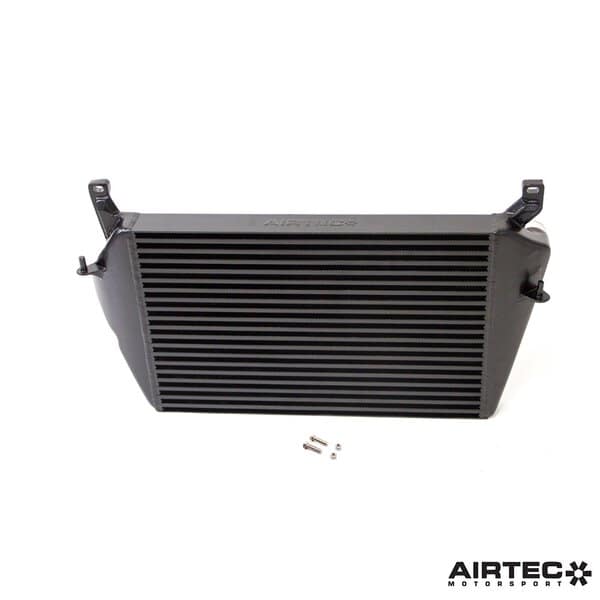

AIRTEC Motorsport performance intercooler for Defender TD5 and Puma 2.2 / 2.4 TDCI models. The larger 11.7L single-pass core gives 134% more capacity and 55% greater frontal area than the standard Defender intercooler, providing substantially increased charge-air cooling capacity for tuned, remapped and hard-worked engines. Cast aluminium end tanks are used rather than fabricated sheet-metal end tanks, giving a stronger, cleaner construction with better-controlled internal airflow through the intercooler core. The original 50mm boost hose connections are retained.
Product Details
- 11.7L intercooler capacity compared with 5L for the standard Defender intercooler
- 134% increase in intercooler capacity
- 55% increase in frontal area
- Large single-pass intercooler core
- Cast aluminium end tanks rather than fabricated sheet-metal end tanks
- 50mm outlets for the standard Defender boost hoses
- Black powder-coated finish
- AIRTEC Motorsport part number ATINTLR05
Standard Defender vs AIRTEC Intercooler
| Specification | Standard Defender Intercooler | AIRTEC Motorsport Intercooler |
|---|---|---|
| Width | 590mm | 555mm |
| Height | 213mm | 352mm |
| Depth | 40mm | 60mm |
| Capacity | 5 litres | 11.7 litres |
| Frontal area | 1,256cm² | 1,953cm² |
Vehicle Fitment
- Defender TD5
- Defender 2.4 TDCI
- Defender 2.2 TDCI
- Defenders with or without air conditioning

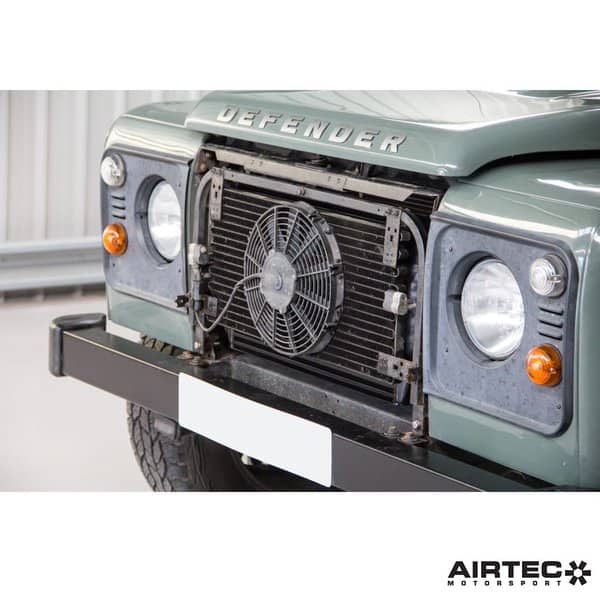

Fitment Notes
The larger intercooler requires minor trimming of the original plastic radiator mounting blocks during installation. On Defenders without air conditioning, the slam-panel support stays also need to be bent slightly forwards to provide clearance for the deeper intercooler core.
Additional information
| Weight | 20 kg |
|---|---|
| Dimensions | 100 × 25 × 60 cm |
Brand
Brand
Airtec Motorsport
AIRTEC Motorsport performance intercoolers for Defender, Discovery and Range Rover Classic, covering 200TDI, 300TDI, TD5 and Puma TDCI engines.
AIRTEC intercoolers use large bar-and-plate cores with flowed cast end tanks, giving a strong, well-finished alternative to the fabricated sheet-metal designs common on many aftermarket intercoolers. Twinwoods stocks AIRTEC where the larger core and vehicle-specific fitment make sense for tuned, remapped and hard-worked Land Rovers.
AIRTEC Performance Intercoolers
AIRTEC Motorsport develops vehicle-specific intercoolers with larger cores, increased frontal area and greater cooling capacity than the standard units they replace. The Land Rover range includes side-mount upgrades for 200TDI and 300TDI engines, full-width Defender intercoolers and larger intercoolers for TD5 and Puma TDCI models.
One of the features we particularly like is AIRTEC's use of flowed cast aluminium end tanks. Unlike intercoolers built around folded and welded sheet-metal tanks, the cast construction allows the internal shape to be formed around the airflow path through the core while also producing a strong, rigid and tidy finished assembly.
Land Rover AIRTEC Fitment
The AIRTEC intercoolers stocked by Twinwoods cover Defender, Discovery 1, Discovery 2 and Range Rover Classic applications across 200TDI, 300TDI, TD5 and Puma TDCI engines. Individual product pages give the relevant fitment details, installation notes and any manual, automatic or air-conditioning restrictions before ordering.
