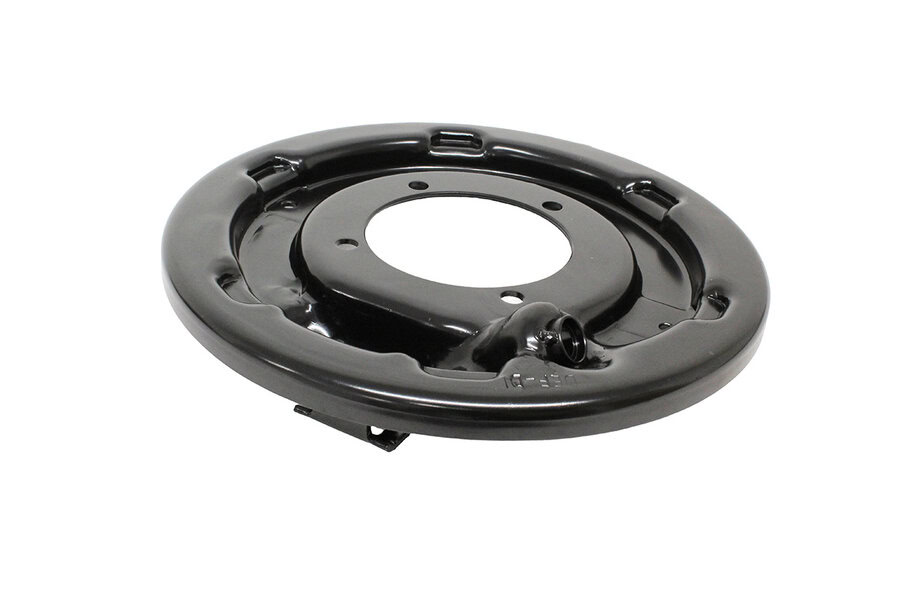

STC1533 / ICL100010 | LT230 Transmission Brake Backing Plate
Replacement LT230 transmission brake backing plate for later-type Land Rover handbrake assemblies using part numbers STC1533 and ICL100010. This backplate is used with the direct-entry transmission brake setup and accepts the cross plate anti-rattle spring.
- Fits later-type LT230 transmission handbrake assemblies
- Used on Defender, Discovery 1, Discovery 2, Range Rover Classic and some P38 LT230 applications
- Part numbers STC1533 and ICL100010
- Accepts the later cross plate retaining / anti-rattle spring arrangement
- Check the existing backing plate style before ordering on early or converted vehicles
£102.00 inc. UK VAT
Please contact us for availability and estimated delivery times
Check Availability / Stock Notification
Description
Replacement LT230 transmission brake backing plate
STC1533 / ICL100010 is the later-type backing plate for the LT230 transmission handbrake assembly. It supports and locates the transmission brake shoes, handbrake cable, adjuster and related hardware, so a solid backing plate is important for correct handbrake setup.
Replace the backing plate if the original is badly corroded, distorted, cracked or worn around the shoe contact areas, cable mount or adjuster. A rotten or damaged backplate can make the transmission handbrake difficult to adjust correctly and can allow poor shoe location, dragging or uneven handbrake operation.
This is the later-type backplate used with the cross plate anti-rattle spring arrangement. Fitment is best checked against the existing transmission brake setup, especially on early vehicles, late changeover vehicles or LT230 conversions.
Related parts for the same LT230 handbrake assembly include the Delphi LT230 transmission brake shoes, aftermarket LT230 transmission brake shoes, LT230 transmission brake shoe fitting kit, LT230 handbrake drum and LT230 handbrake adjuster kit.
Additional information
| Weight | 2 kg |
|---|---|
| Dimensions | 35 × 35 × 10 cm |
Brand
Brand
AP Driveline
Fitment
Fitment
| Vehicle | Engine | Category | Sub-Category | Group |
| DEFENDER 1983 -2006 | ||||
| All | Braking System | Handbrake and Transmission Brake | Brake Shoes and Associated Parts | |
| DEFENDER 2007> | ||||
| All | Braking System | Handbrake and Transmission Brake | Brake Shoes and Associated Parts | |
| DISCOVERY 1 1989 – 1998 | ||||
| All | Braking System | Handbrake and Transmission Brake | Brake Shoes and Associated Parts | |
| DISCOVERY 2 1998 – 2004 | ||||
| All | Braking System | Handbrake and Transmission Brake | Brake Shoes and Associated Parts | |
| RANGE ROVER 1995 – 2002 | ||||
| All | Braking System | Handbrake and Transmission Brake | Brake Shoes and Associated Parts | |
| RANGE ROVER CLASSIC | ||||
| All | Braking System | Handbrake and Transmission Brake | Brake Shoes and Associated Parts |
