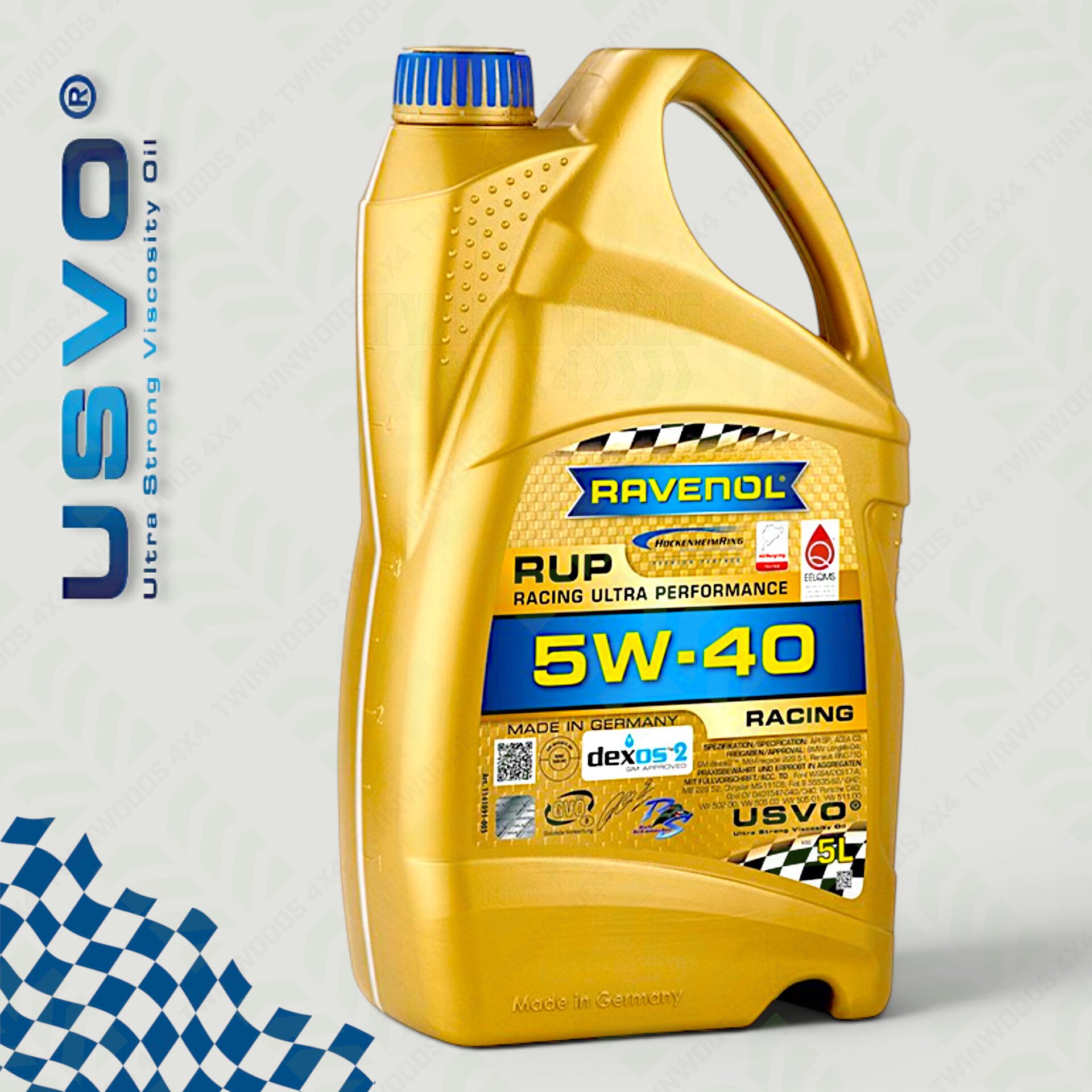

Ravenol RUP 5W-40 Racing Engine Oil 5L – TD5 VNT Turbo 250HP+
£101.76 inc. UK VAT
Available – typically dispatched within 1–2 working days
Secure Checkout
Fast Dispatch
60 Day Returns
Worldwide Delivery
UK Dispatch
Free mainland UK shipping £99+ · Express & worldwide options available
Description
Ravenol RUP Racing Ultra Performance 5W-40 is our preferred engine oil for the most highly tuned Defender and Discovery 2 TD5 engines, particularly 250–300 bhp-plus builds and the VNT turbo conversions commonly used at this level. Race-developed but fully approved for everyday road use, RUP protects both the engine and turbocharger when sustained boost, high oil temperatures and extreme mechanical load place far greater demands on the lubricant than standard TD5 servicing.
Best oil for a TD5 with a VNT turbo
For a highly tuned TD5 with a VNT turbo, our preferred oil is Ravenol RUP 5W-40. High-output VNT builds need more than an ordinary road-going engine oil: the lubricant must protect the crankshaft, bearings, camshaft and unit-injector valvetrain while also lubricating and helping to carry heat away from the turbocharger.
RUP sits above our normal TD5 oil recommendations once the engine output, turbocharger load and operating temperatures have moved beyond ordinary road-tuning levels. Its racing formulation provides the high-temperature stability, shear resistance and secure lubricating film needed by serious TD5 builds without making it unsuitable for vehicles that are still regularly driven on the road.
The forgotten part of a high-power TD5 build
High-output TD5 builds normally receive upgraded turbochargers, intercoolers, clutches, halfshafts, CV joints and other driveline components, yet the engine oil is often treated as though the engine were still producing standard power. The lubricant protecting the engine and turbocharger deserves the same consideration as the hardware being upgraded around them.
The Defender TD5 originally produced approximately 121 bhp, while the Discovery 2 TD5 produced approximately 137 bhp. A 250–300 bhp TD5 is therefore producing roughly 1.8 to 2.5 times its original factory output, depending on the vehicle and final tune.
That increase does not affect the engine alone. Higher boost pressure, greater fuelling and sustained high-load running place substantially more heat and stress into the turbocharger and its oil-fed bearing system. The same oil must protect the crankshaft, bearings, camshaft and unit-injector system while also lubricating and cooling a turbocharger operating far beyond the original TD5 duty.
A standard road oil may still carry a specification associated with the original TD5, but that specification was established around the original engine output and operating conditions. It cannot reasonably be expected to retain the same protection margin when the engine and turbocharger are producing twice the original power under sustained extreme load.
Even Ravenol VMO 5W-40, our preferred oil for standard, remapped, towing and hard-working road TD5s, was not developed as a dedicated motorsport lubricant for engines producing two or more times their original output. At 250–300 bhp and beyond, RUP is the appropriate step above a conventional road oil.
Race-developed protection for road-going TD5s
RUP uses a PAO-based fully synthetic formulation with highly polar Group V base oils and Ravenol USVO technology. Its 3.9 mPa·s HTHS viscosity, extreme shear stability and very low 6.0% Noack volatility help it maintain a secure lubricating film at very high operating temperatures rather than losing viscosity or evaporating under sustained load.
These characteristics are particularly relevant to high-output VNT-equipped TD5 engines, where the turbocharger can operate under substantial boost and heat across a much broader part of the engine’s working range. The oil must continue flowing quickly while resisting shear, oxidation and evaporation as temperatures rise.
RUP was developed as a genuine motorsport oil rather than an ordinary road oil carrying racing branding. However, it has also passed the required testing for recognised manufacturer approvals for everyday road use. This makes it equally at home in a competition TD5 or a highly tuned road vehicle driven normally between events, hard-use sessions or off-road competition.
Ravenol also includes VW 505.01 among the manufacturer recommendations, providing a relevant specification link to the unit-injector design used by the TD5. RUP is suitable for both petrol and diesel engines and provides genuine racing-oil protection without becoming an impractical race-only lubricant.
TD5 Engine and Turbo Use
- Highly tuned Defender TD5 engines
- Highly tuned Discovery 2 TD5 engines
- High-output TD5 builds producing around 250–300 bhp and beyond
- TD5 engines running VNT or larger turbocharger conversions
- Competition, motorsport and sustained extreme-load use
- Highly tuned road vehicles requiring motorsport-level engine and turbocharger protection
RUP is aimed at the extreme end of TD5 tuning rather than ordinary servicing. For standard, normally remapped, towing and hard-working road vehicles, Ravenol VMO 5W-40 TD5 engine oil remains our preferred everyday oil.
Engine-builder advice should take priority on bespoke competition engines where bearing clearances, oil temperatures, fuel dilution or service intervals differ substantially from a normal TD5 installation.
Specifications
- SAE 5W-40
- ACEA C3
- API SN
- Fully synthetic PAO-based engine oil
- Ravenol USVO technology
Official Approvals
- BMW Longlife-04
- GM dexos2™ – licence D20583HI081
- Mercedes-Benz MB 229.51
- Renault RN0700
- Renault RN0710
- Volkswagen VW 511 00
Manufacturer Recommendations
- Ford WSS-M2C917-A
- Mercedes-Benz MB 226.5
- Porsche C40
- VW 502 00
- VW 505 00
- VW 505 01
Technical Data
| Property | Unit | Data | Audit |
|---|---|---|---|
| Density at 20 °C | kg/m³ | 846,0 | EN ISO 12185 |
| Colour | – | Gold | Visual |
| Viscosity at 100 °C | mm²/s | 14,3 | DIN 51562-1 |
| Viscosity at 40 °C | mm²/s | 87,5 | DIN 51562-1 |
| Viscosity index | VI | 169 | DIN ISO 2909 |
| HTHS viscosity at 150 °C | mPa*s | 3,9 | ASTM D5481 |
| CCS viscosity at -30 °C | mPa*s | 4510 | ASTM D5293 |
| Low-temperature pumping viscosity (MRV) at -35 °C | mPa*s | 21.300 | ASTM D4684 |
| Pourpoint | °C | -51 | DIN ISO 3016 |
| Noack volatility | % M/M | 6,0 | DIN 51581 |
| Flashpoint | °C | 244 | DIN EN ISO 2592 |
| TBN | mg KOH/g | 8,3 | ASTM D2896 |
| Sulphated ash | %wt. | 0,8 | DIN 51575 |
Related TD5 Performance Parts
For a complete TD5 service using MANN-FILTER throughout, see our MANN-FILTER TD5 service kit for Defender and Discovery 2. It includes the air, fuel, full-flow oil and centrifugal rotor oil filters, plus a new sump plug and washer.
For turbochargers, oil feed and drain components and supporting hardware used on tuned builds, see our TD5 turbos and turbo parts.
Additional information
| Weight | 5 kg |
|---|---|
| Dimensions | 25 × 15 × 30 cm |
| Viscosity | 5W-40 |
| ACEA | C3 |
| API | SN |
Brand
Brand
Ravenol
Ravenol is our main lubricant brand for Land Rover servicing, covering engine oils, manual and automatic gearboxes, transfer boxes, differentials, ACE and power steering, brake fluid, coolant, grease and specialist workshop fluids.
We use Ravenol because the range lets us select the lubricant around the actual engine, gearbox, axle or hydraulic system rather than relying on viscosity alone. The result is a deliberately selected Land Rover range in which every product has a defined job, from TD5 engine oil and R380 MTF-94 to specialist ZF ATF, LT230 oil, limited-slip differential oil and later transfer-box fluids.
Why Twinwoods partners with Ravenol
Ravenol is a genuine German lubricant manufacturer, developing and producing its oils, fluids and greases in Germany. The range is backed by unusually detailed technical data, which matters to us because lubricant choice should be based on much more than the viscosity printed on the bottle. We use Ravenol in our service kits, recommend it for the Land Rovers we specialise in and use it in vehicles we work on ourselves. More importantly, the range gives us properly specialised products for different engines, gearboxes, transfer boxes, axles and hydraulic systems rather than trying to make one generic lubricant cover everything.Ravenol oils and fluids for Land Rover
| System | Ravenol products | What matters |
|---|---|---|
| Engine oil | VMO, RUP, Turbo-C HDC, TSi, FO, FLJ, VMP, SFE and Formel Extra | Engine, viscosity, specification, emissions equipment and how the vehicle is used |
| Manual gearboxes | MTF-2 / MTF-94 for the R380 and VSG 75W-90 for the Defender Puma MT82 | Gearbox type and complete lubricant specification rather than viscosity alone |
| Automatic gearboxes | ATF 5/4 HP and ATF Dexron III H | ATF 5/4 HP is our specialist choice for the Discovery 2 ZF 4HP gearbox, while Dexron III H covers compatible general ATF duties |
| Transfer boxes | MZG 80W-90 and VSG 75W-90 for the LT230, plus DTF-1 for compatible later active transfer boxes | Transfer box design and the fluid specification required by that particular unit |
| Axles and differentials | EPX 80W-90, VSG 75W-90, RHP 75W-90, LS 75W-90 and LS 80W-90 | Standard, ATB or limited-slip differential design together with the required viscosity and friction characteristics |
| ACE and power steering | SSF and ATF Dexron III H | Hydraulic system and the correct fluid specification |
| Brakes and clutch | DOT 4 LV and DOT 4 | DOT 4 LV is our main brake and clutch fluid, with conventional DOT 4 retained where appropriate |
| Cooling systems | C12+ OAT and C12evo Si-OAT coolant concentrates | Coolant technology, engine and the fluid already in the cooling system |
| Grease | MoS2 Multi-Purpose Grease, LI-86 Bearing & Propshaft Grease and HRG 2 Hot Red Grease | MoS2 for broad workshop and driveline use, LI-86 for bearings and universal joints, and HRG 2 for high-temperature grease duties |
| Workshop fluids | Professional Engine Cleaner and Winter Screenwash Concentrate | Purpose-specific maintenance products alongside the main lubricant range |
More than the correct number on the bottle
Two oils carrying the same viscosity grade can be very different products. Base oil, additive chemistry, volatility, viscosity stability, friction characteristics and manufacturer specifications all affect how a lubricant behaves once it is hot and working inside the component. That is particularly important with Land Rovers. An R380 gearbox, LT230 transfer box, Rover differential, ZF automatic gearbox and electronically controlled later transfer box all place different demands on their lubricant. We select the Ravenol product around the component itself rather than simply finding the nearest familiar viscosity.Identify the component
Start with the engine, gearbox, transfer box, differential or hydraulic system being serviced.
Match the specification
Check the complete ACEA, API, GL, manufacturer or transmission-fluid requirement rather than viscosity alone.
Consider vehicle use
Standard servicing, towing, off-road use and highly tuned engines can place very different demands on the lubricant.
Check existing fluid
Coolant, hydraulic fluids and specialist transmission oils should not be mixed simply because their colour or general description appears similar.
Ravenol engine oil
Our Ravenol engine-oil range runs from traditional oils for 200TDI, 300TDI and classic petrol engines through to specialist oils for TD5, Defender Puma TDCI and later Land Rover engines. Ravenol VMO 5W-40 remains our main TD5 recommendation, RUP 5W-40 covers very highly tuned TD5 engines, Turbo-C HDC 15W-40 is our preferred oil for standard 200TDI and 300TDI engines, while FO, FLJ, VMP and SFE cover the relevant later engine and emissions-system requirements.Related Ravenol and oil sections
| Section | Use it for |
|---|---|
| Oils, Grease & Fluids | The complete Twinwoods lubricant, coolant and service-fluid range |
| Engine Oil | Engine oils selected around Land Rover engines, viscosity and specification |
| Gear Oil | R380, MT82, LT230, differential and specialist transfer-box oils |
| ATF & Steering Fluid | Automatic transmission and power-steering fluids |
| ACE Fluid | Discovery 2 Active Cornering Enhancement hydraulic fluid |
| Antifreeze & Coolant | OAT and Si-OAT coolant for different generations of Land Rover |
| Brake Fluid | DOT 4 and DOT 4 LV brake and clutch fluids |
| Land Rover Grease | Grease for propshafts, universal joints, bearings, high-temperature use and general workshop lubrication |
