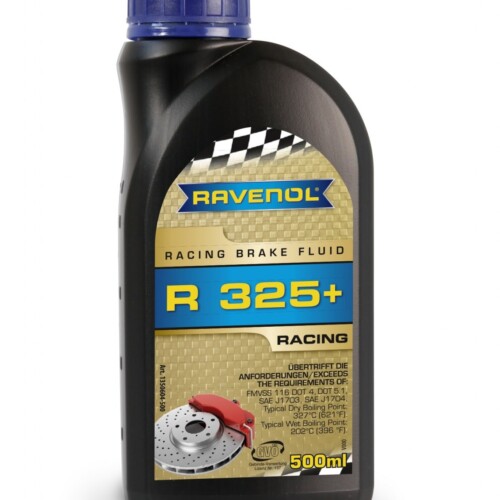

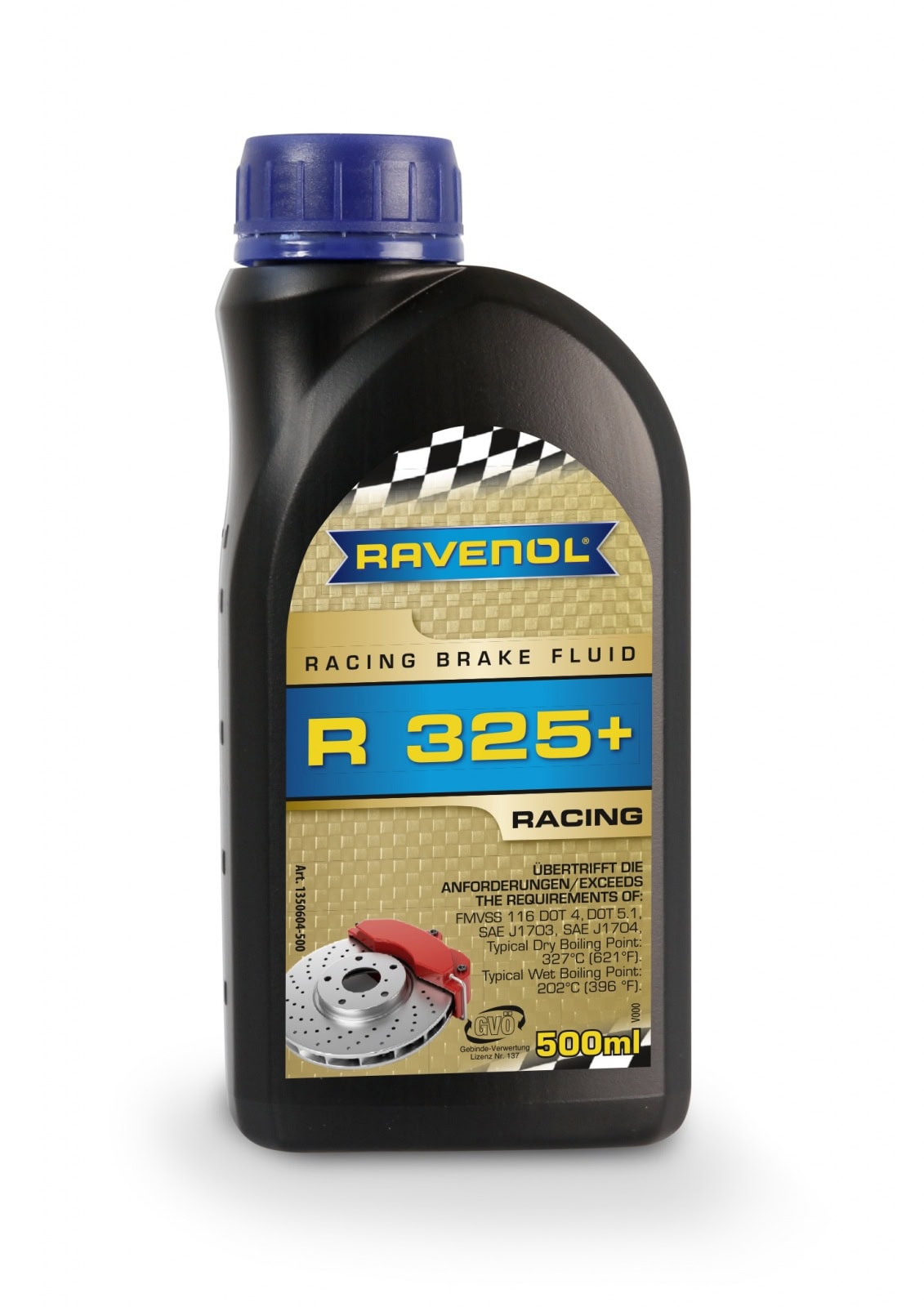

RAVENOL R325+ Racing Brake Fluid – 500ml
RAVENOL R325+ Racing Brake Fluid is a high-performance DOT 4 brake fluid engineered for extreme motorsport use, offering a dry boiling point of 328°C for outstanding vapor lock resistance and pedal stability. Trusted by top race and rally teams, it delivers exceptional ABS performance, enhanced lubricity, and thermal stability under the harshest conditions. Ideal for endurance racing, rally, or track day use. Not suitable for systems requiring mineral-based fluids. Always use fresh before competition for best results.
£23.28 inc. UK VAT
Normal Stock ItemRegular stock line. Stock may be running low or awaiting replenishment, but is normally available to us quickly.
Genuine, OEM & trusted aftermarket parts for vehicles we know and support.
Free mainland UK shipping £99+ · Upgraded delivery options at checkout
Calculate shipping price
Please fill in the fields below with the shipping destination details in order to calculate the shipping cost.
Description
RAVENOL R325+ Racing Brake Fluid is a specially developed high performance brake fluid that has a very high thermal resistance at the highest DOT 4 level. The formula is based on top class technology with a glycol ether / ester system. The use of a proven additive combination in conjunction with a basis system that is specifically adjusted for the high boiling range, guarantees safety even under the most extreme loads. Enhanced lubricity helps extend the life of the metal moving parts of the brake system and increases system efficiency.
RAVENOL R325+ Racing Brake Fluid is an ideal brake fluid for motor sports and is used by many leading race & rally teams, including 24H endurance racing and international rallying. Tested to a dry boiling point of 328°C and offers outstanding resistance to vapour lock and pedal fade, even under the extreme conditions. .
Application
RAVENOL R325+ Racing Brake Fluid is a high performance brake fluid specially developed specifically for use in all forms of competitive motor sport. To achieve optimum results, the braking system should be freshly filled with RAVENOL R325+ Racing Brake Fluid before each race. In particular when the brakes are inordinately hot or racing under tropical conditions.
Not suitable for vehicles that require a mineral brake fluid (LHM). Not recommended if the components used are made of magnesium or are alloys with a high magnesium content. Do not mix with other brake fluids.
Specifications
- US FMVSS 116 DOT 4
- DOT 5.1
- SAE J 1703
- SAE J 1704
Characteristics
RAVENOL R325+ Racing Brake Fluid offers:
- Optimum ABS properties
- Chemical stability
- Highest lubricating power
- Neutral towards brake parts
- Low viscosity even at low temperatures
- Miscibility with all brake fluids with the same specifications
| Property | Unit | Data | Audit |
|---|---|---|---|
| Colour | yellow | visual | |
| Sediment | % | <0,05 | FMVSS 116 |
| Aluminium | Δ mg/cm² | -0,01 | FMVSS 116 |
| SBR at 120 °C | Ø Δ, mm | +1,05 | FMVSS 116 |
| SBR at 70 °C | Ø Δ, mm | +0,76 | FMVSS 116 |
| Boiling point | °C | 328 | FMVSS 116 |
| Steel | Δ mg/cm² | +0.01 | FMVSS 116 |
| Hardness Change | °IRHD | -4 | FMVSS 116 |
| Rubber Diameter Change | +0,03 | FMVSS 116 | |
| Evaporation | %w/w | 50 | FMVSS 116 |
| Tinned Iron | Δ mg/cm² | +0,03 | FMVSS 116 |
| Viscosity at 100 °C | mPa*s | 2,59 | ASTM D445 |
| Viscosity at -40 °C | cSt | 1495 | ASTM D445 |
| Water Tolerance at +60 °C | klar, keine Ablagerungen | FMVSS 116 | |
| Water Tolerance at -40 °C | klar, 5s | FMVSS 116 | |
| Water content | mg/kg | <0,20 | DIN 51777-1 |
| Chemical Stability | °C | +1 | FMVSS 116 |
| Density at 20 °C | kg/m³ | 1078,0 | EN ISO 12185 |
| EPDM at 120 °C | Δ Härte | -2,5 | FMVSS 116 |
| EPDM at 70 °C (as required by SAE J1703) | Δ Härte | -1 | FMVSS 116 |
| Appearance | i.O. | FMVSS 116 | |
| Fluidity & Appearance at -40 °C | i.O., 4s | FMVSS 116 | |
| Fluidity & Appearance at -50 °C | i.O., 7s | FMVSS 116 | |
| Cast Iron | Δ mg/cm² | -0,10 | FMVSS 116 |
| High Temperature Stability | °C | -1 | FMVSS 116 |
| Copper | Δ mg/cm² | -0,05 | FMVSS 116 |
| Brass | Δ mg/cm² | -0,04 | FMVSS 116 |
| Compatibility at +60 °C | klar, keine Ablagerungen | FMVSS 116 | |
| Compatibility at -40 °C | klar, keine Phasentrennung | FMVSS 116 | |
| Wet Equilibrium Reflux Boiling Point | °C | 204 | FMVSS 116 |
| pH – value | 7,51 | FMVSS 116 |
Additional information
| Weight | 0.55 kg |
|---|
